Name: A Myriad of Choices: 114425.00 Leeson 2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor in Diverse Styles and Hues.
SKU: ZWXLY 1698655661
Price: 95.99 USD
Availability: InStock

Sale!

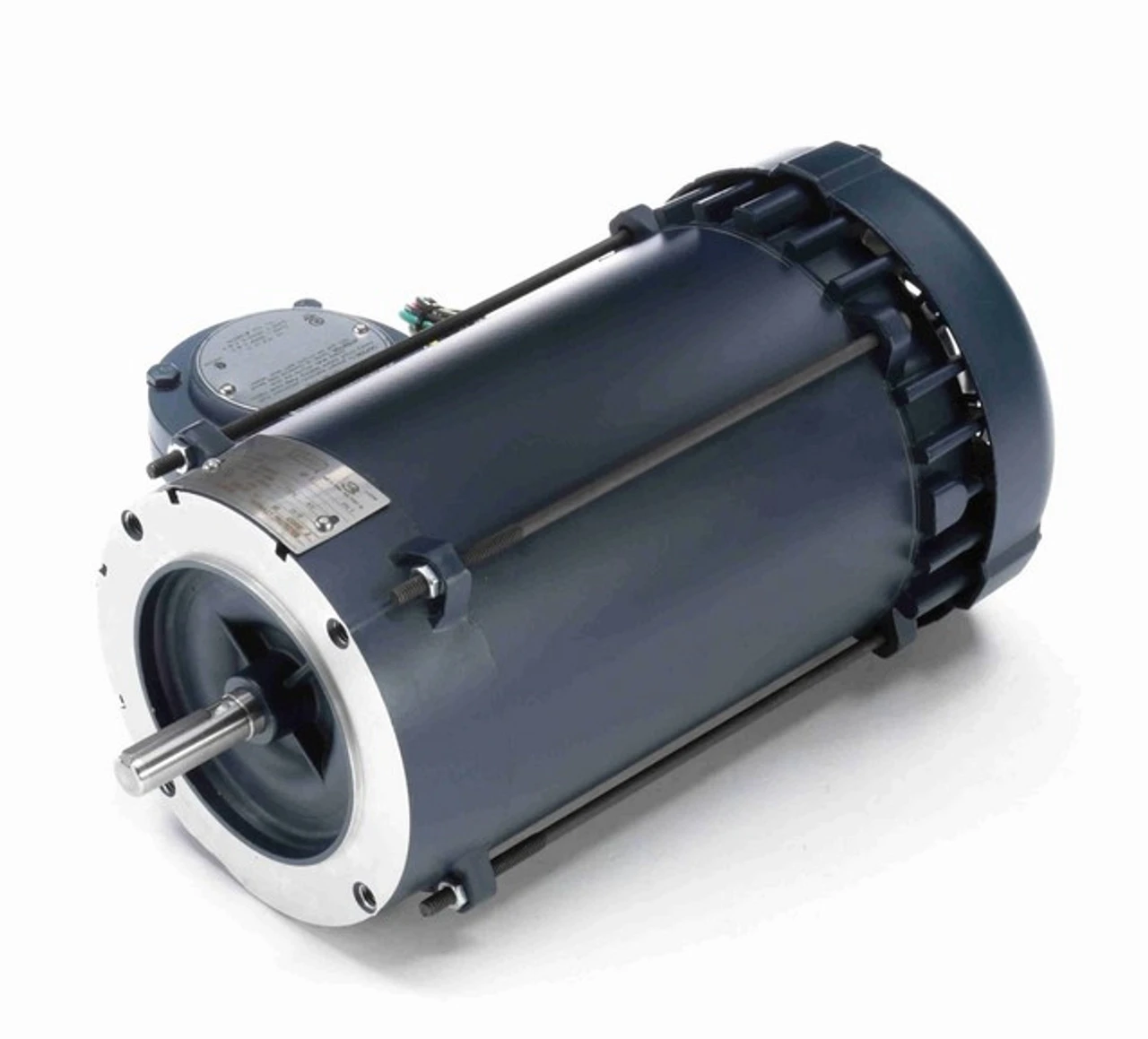

114425.00 Leeson 2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor

114425.00 Leeson 2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor - Image 2

114425.00 Leeson 2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor - Image 3

Original price was: $301.00.Current price is: $95.99.

SKU: ZWXLY 1698655661 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Leeson

Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less
Online assistance, always just a message away.

Description
Reviews (0)

2 hp 3600 RPM, 20.0/10.8-10.0 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload Protection = Auto
No Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.114425.00
