Original price was: $388.00.$99.99Current price is: $99.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 1/2 hp 1800 RPM, 1.7-1.6/0.8 amps 208-230/460 Volts 60 Hz. Three Phase
- NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,

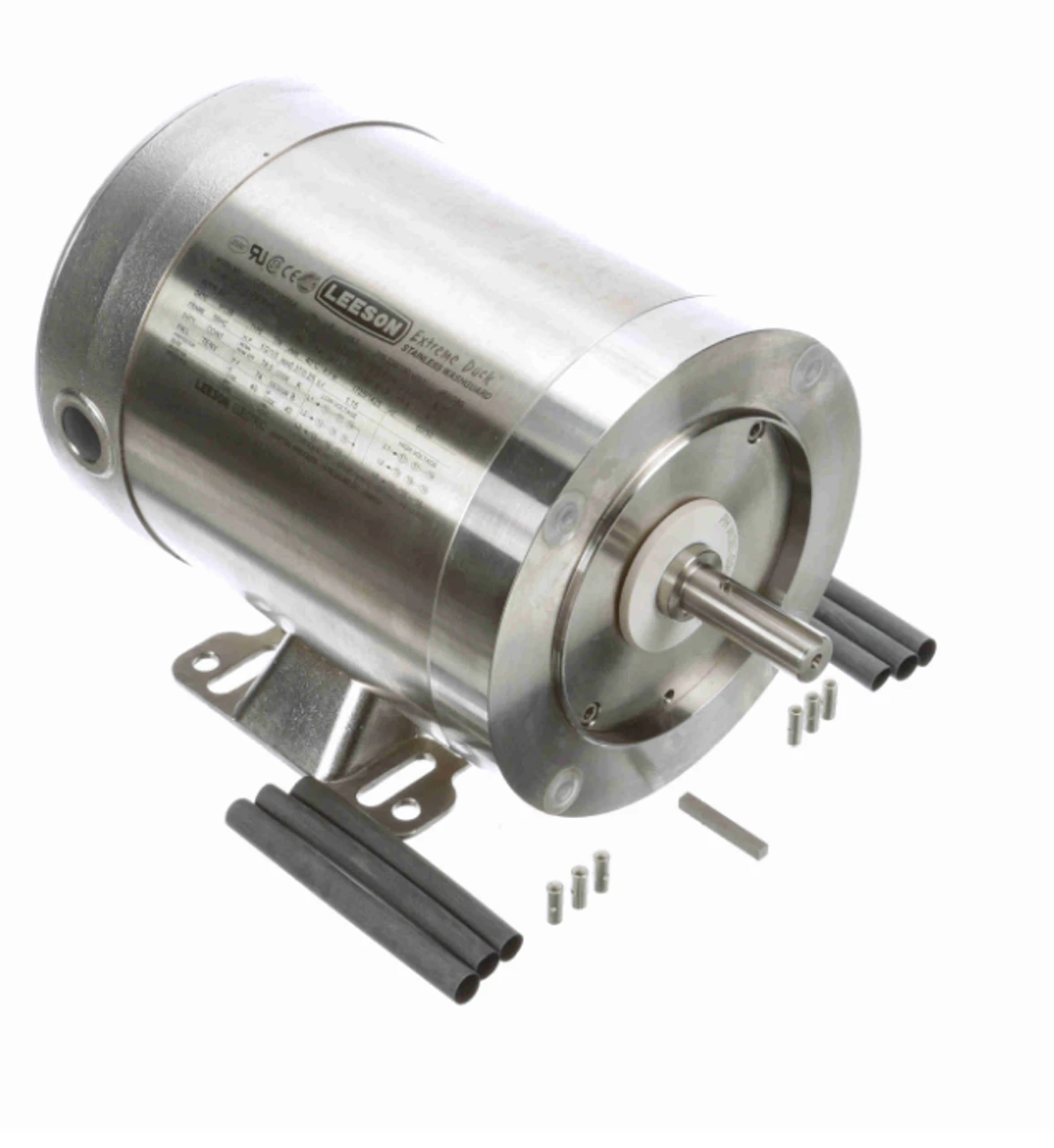

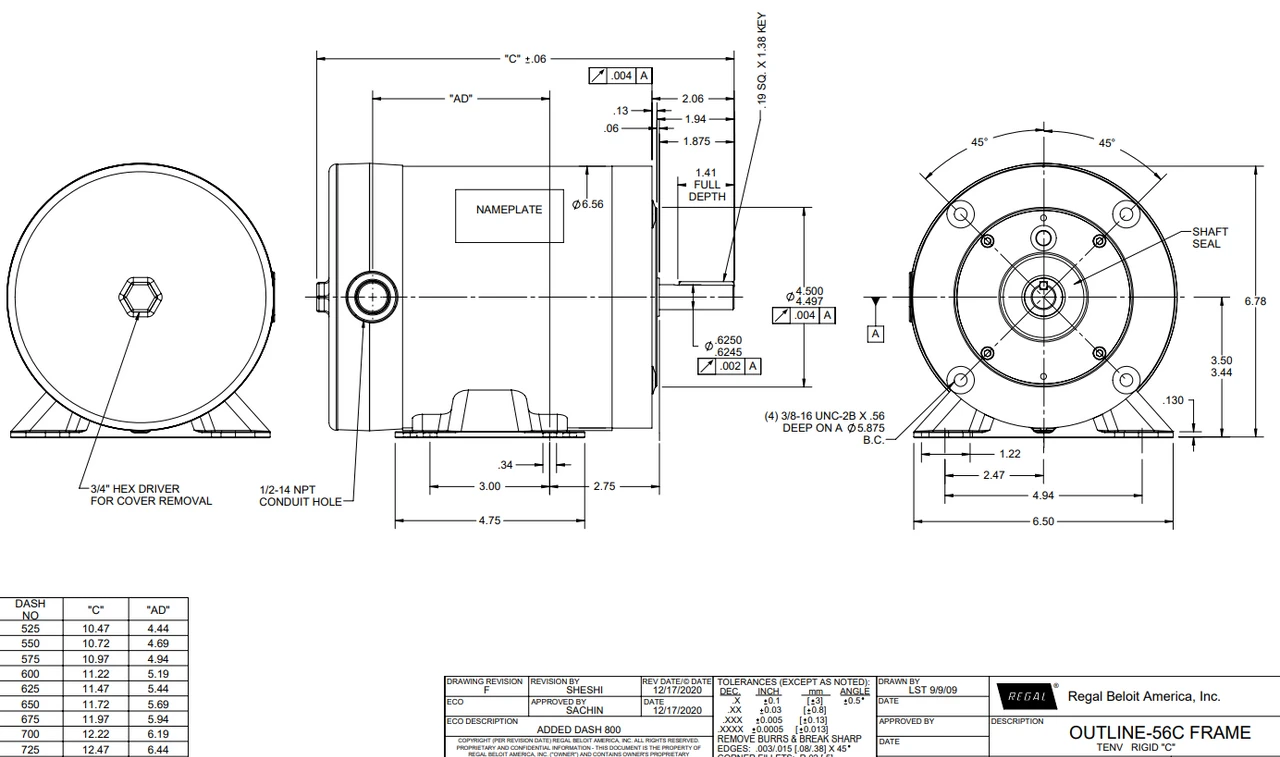

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 117906.00
Be the first to review “117906.00 Leeson Extreme Duck 1/2 Hp 1800 RPM 208-230/460V 3-Phase 56C Frame TENV (base) Motor”
