Original price was: $110.80.$77.56Current price is: $77.56.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 1/4 hp 1075 RPM, 1.7 amps 208-230V Volts 60 Hz PSC Motor
- NEMA 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 4 1/2″
- Overload Protection: Auto
- Stud Mount, Ball Bearings, Class F Insulation, Rev
- 1 Year Manufacture Warranty

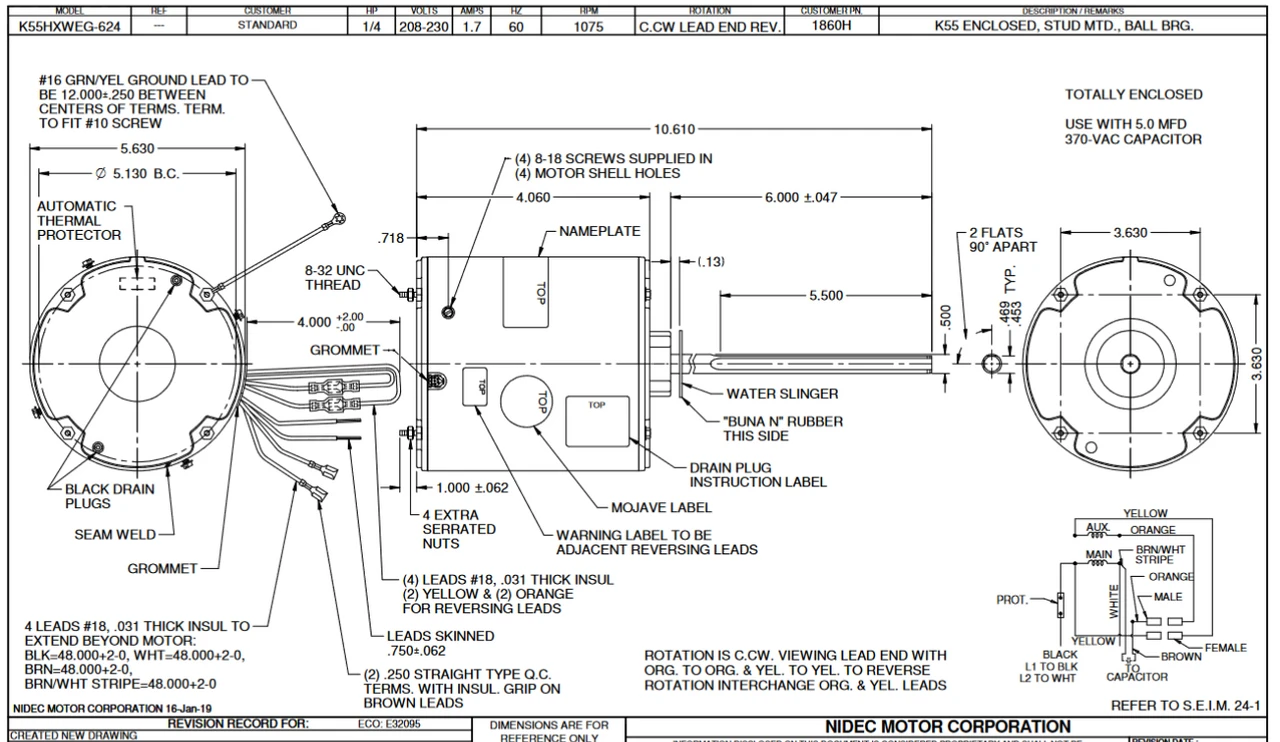

Condenser Fan Motor for hot environments. Wiring diagram on motor name plate. TEAO = Open Drip Proof, K055WEG0624012B
Be the first to review “1860H Nidec 1/4 Hp 1075 RPM 208-230V 5.6″ Dia. (No Base) 1-Speed TEAO Condenser Motor”
