ACT125 US Motor | 1.25 THP 3450 RPM 56J 115/230V Pool Pump Motor

ACT125 US Motor | 1.25 THP 3450 RPM 56J 115/230V Pool Pump Motor - Image 2

Original price was: $329.00.Current price is: $95.99.

SKU: ZWXLY 1698655129 Categories: Pool & Spa Motors, US Electric Motors Tag: US Motors

Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less
Online assistance, always just a message away.

Description
Reviews (0)

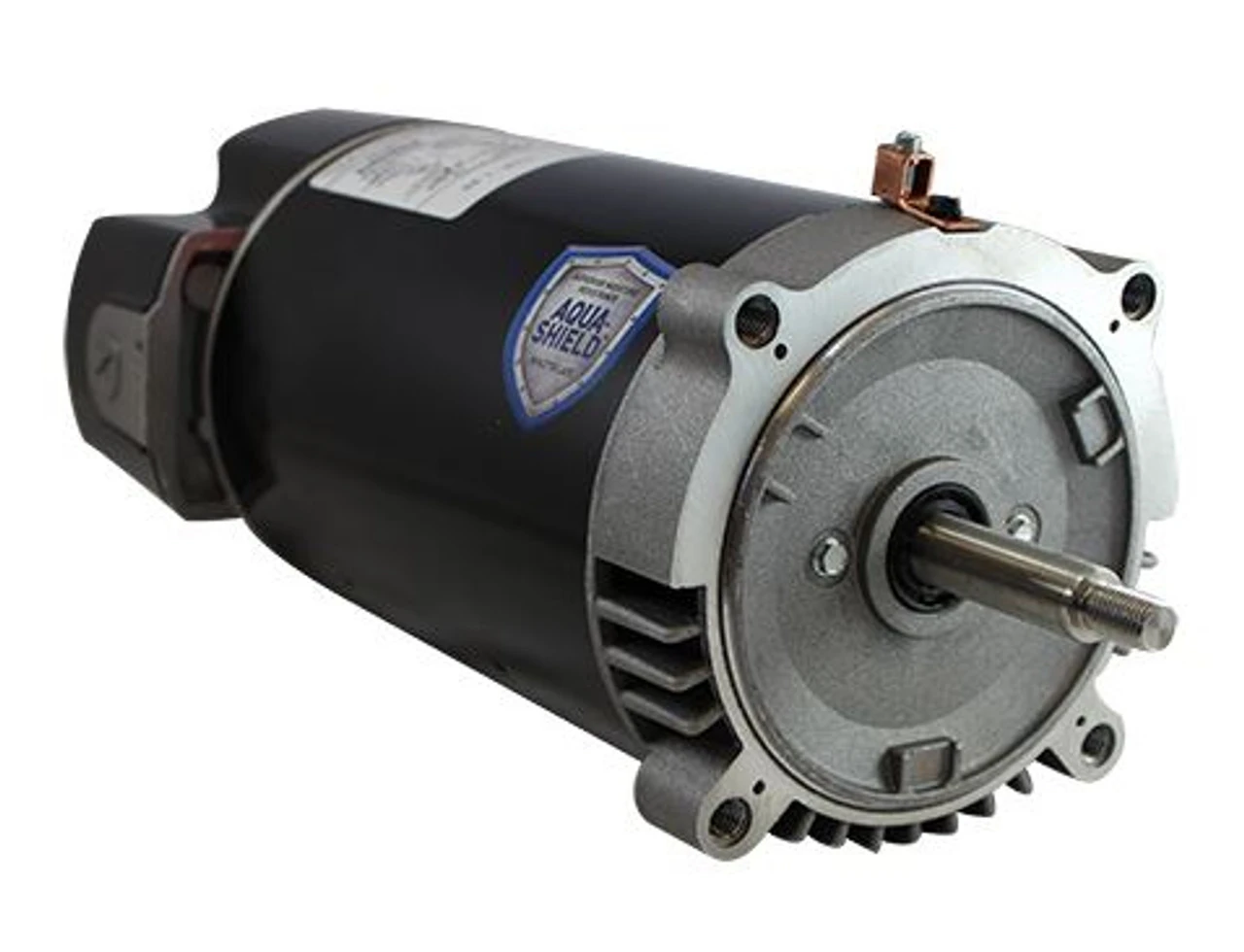

AQUA-SHIELD High Efficiency 56J Pool Motor

1.25 THP (Total Horsepower)
3450 RPM 56J, 11.4/5.7 amps, 115/230V 60hz. Capacitor Start/Run
NEMA 56J frame (no base), 5/8″ diameter threaded stainless steel shaft
Overload Protection: Auto – Service Factor 1.0, Class B insulation
Non-Reversible – CCW Rotation facing the shaft
C-Face Mount, Ball Bearings, Open Drip Proof (ODP)

Swimming pool pump motor. Commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. 1 year warranty.

Model T055CRU1612013J
