Original price was: $167.40.$99.99Current price is: $99.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 3/4 HP 3450 RPM, 10.0 amps, 115V 60hz. Single Phase
- NEMA 48Y Open Frame, 1/2″ diameter stainless steel shaft with 3/8″ dia. end thread
- 1.0 Service Factor, Auto Overload Thermal Protection, Class F insulation
- Non-Reversible – CCW Rotation facing the shaft
- Rigid Base Mount, Ball Bearings, 3 1/2 shaft height

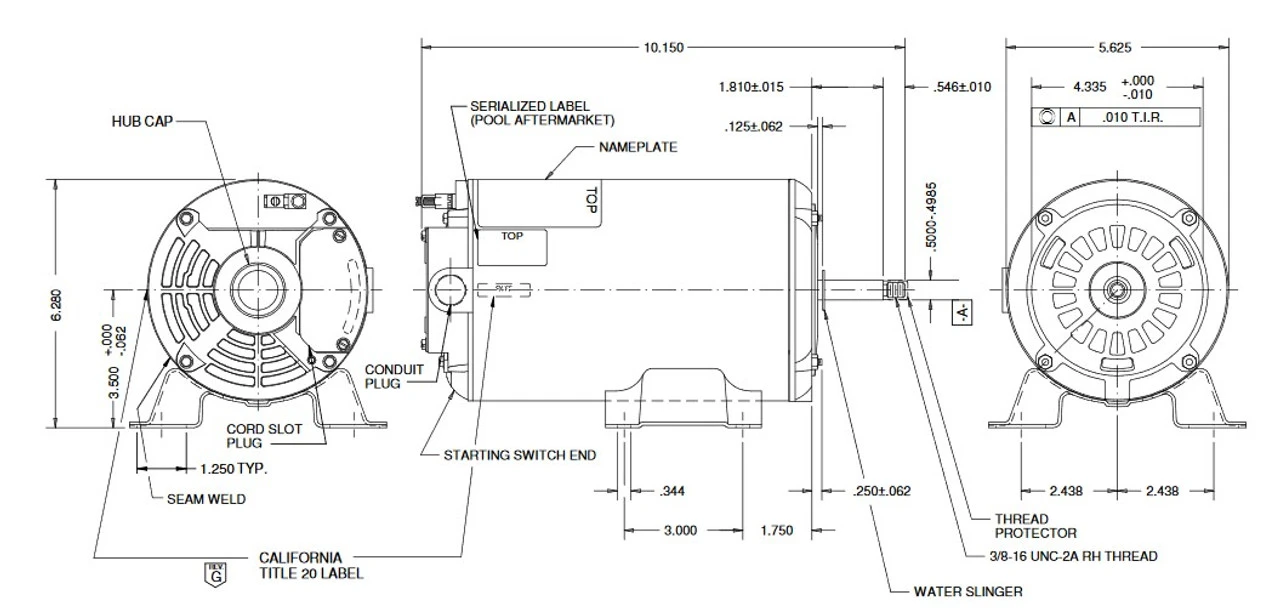

Above ground swimming pool and spa motors. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. S055PLD7635013J
Be the first to review “AGL75FL1 US Motors 3/4 Hp 3450 RPM 48 Frame 115V Thru-Bolt Pool-Spa Motor”
