Original price was: $329.00.$98.99Current price is: $98.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 1 HP 3450 RPM 48Y, 11.4/5.7 amps, 115/230V 60hz. Capacitor Start/Run
- 1.25 THP (Total Horsepower)
- NEMA 48Y frame (no base), 1/2″ diameter threaded stainless steel shaft
- Overload Protection: Auto – Service Factor 1.0, Class B insulation
- Non-Reversible – CCW Rotation facing the shaft
- Square Flange Mount (1081 design), Ball Bearings, Open Drip Proof (ODP)

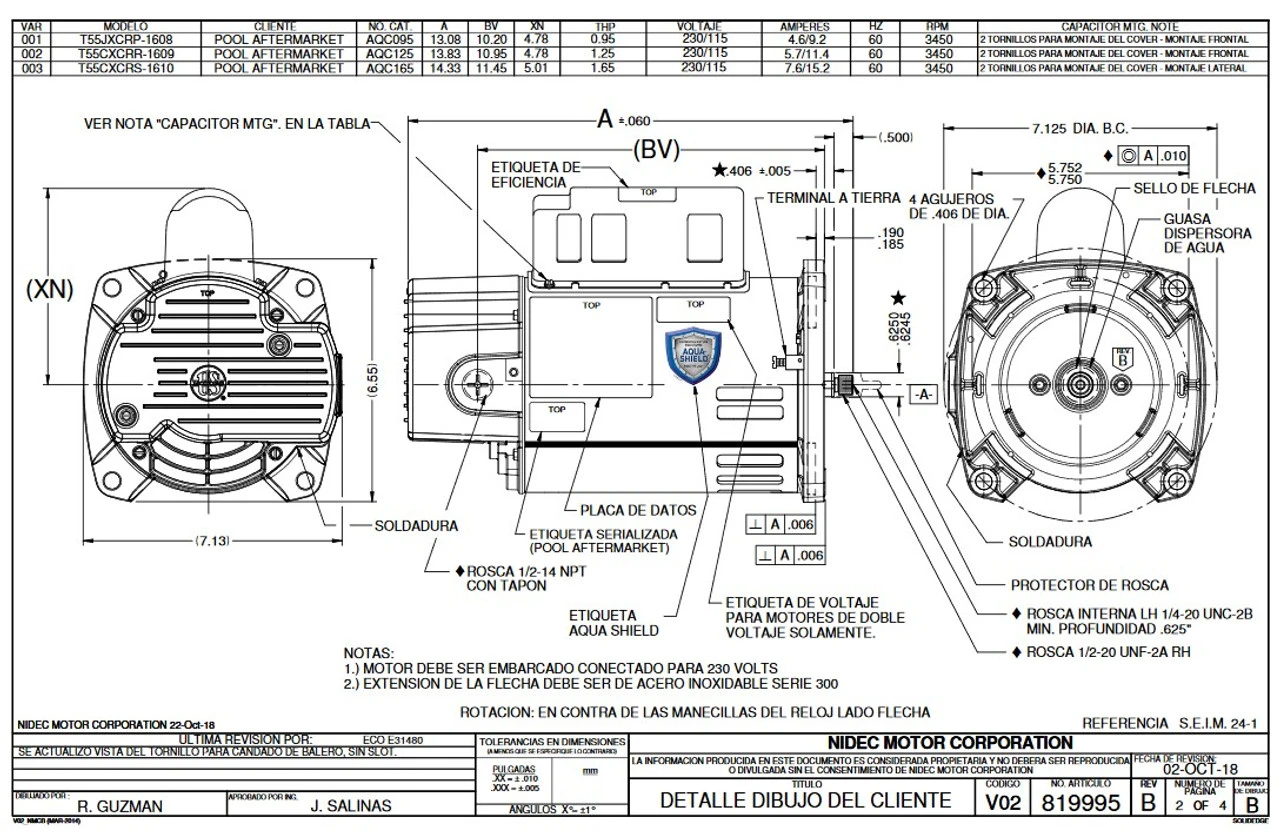

Swimming pool pump motor. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. 1 year warranty. Model T055CRR1609013J
Be the first to review “AQC125 US Motors 1 Hp 3450 RPM 48Y 115/230V Pool Pump Motor”
