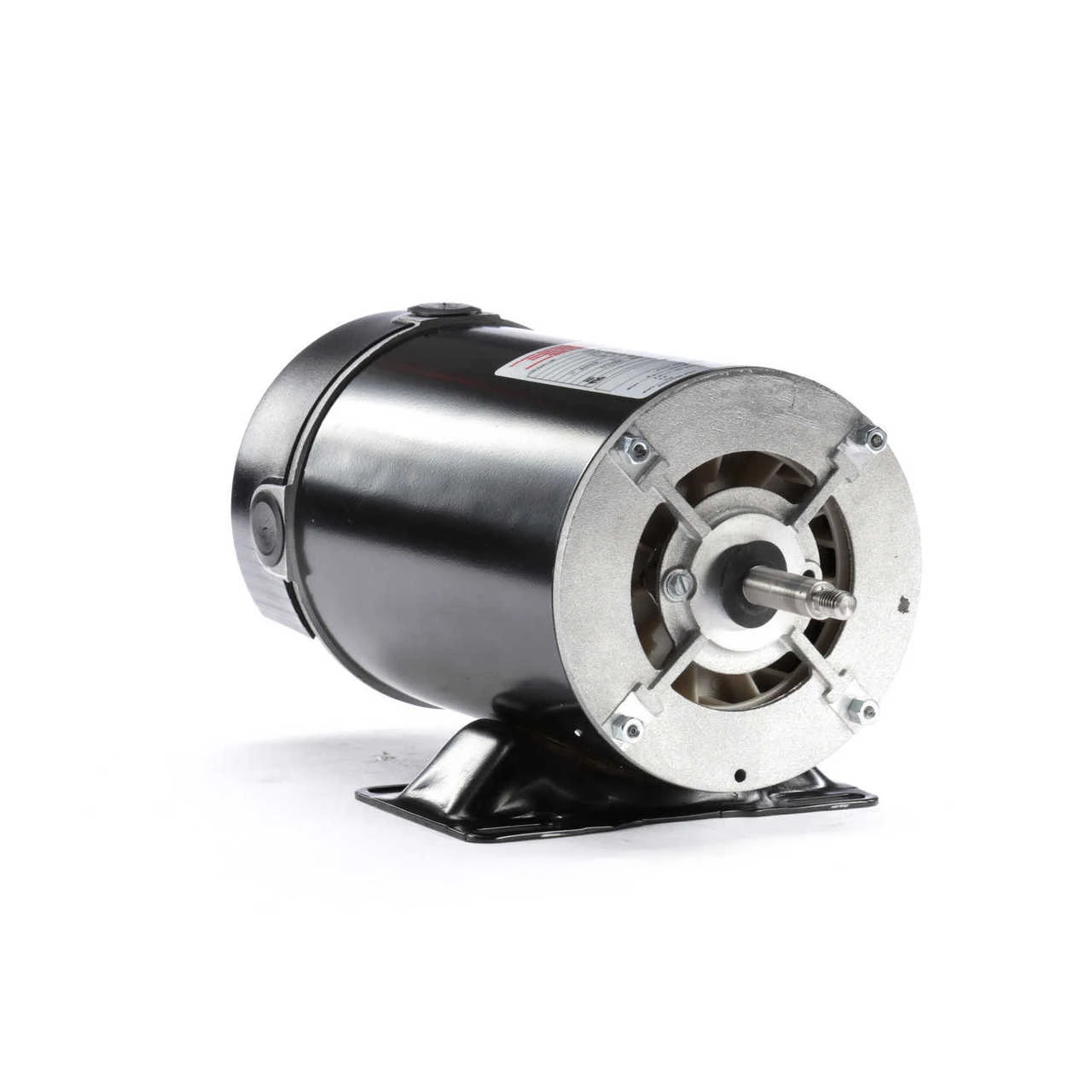

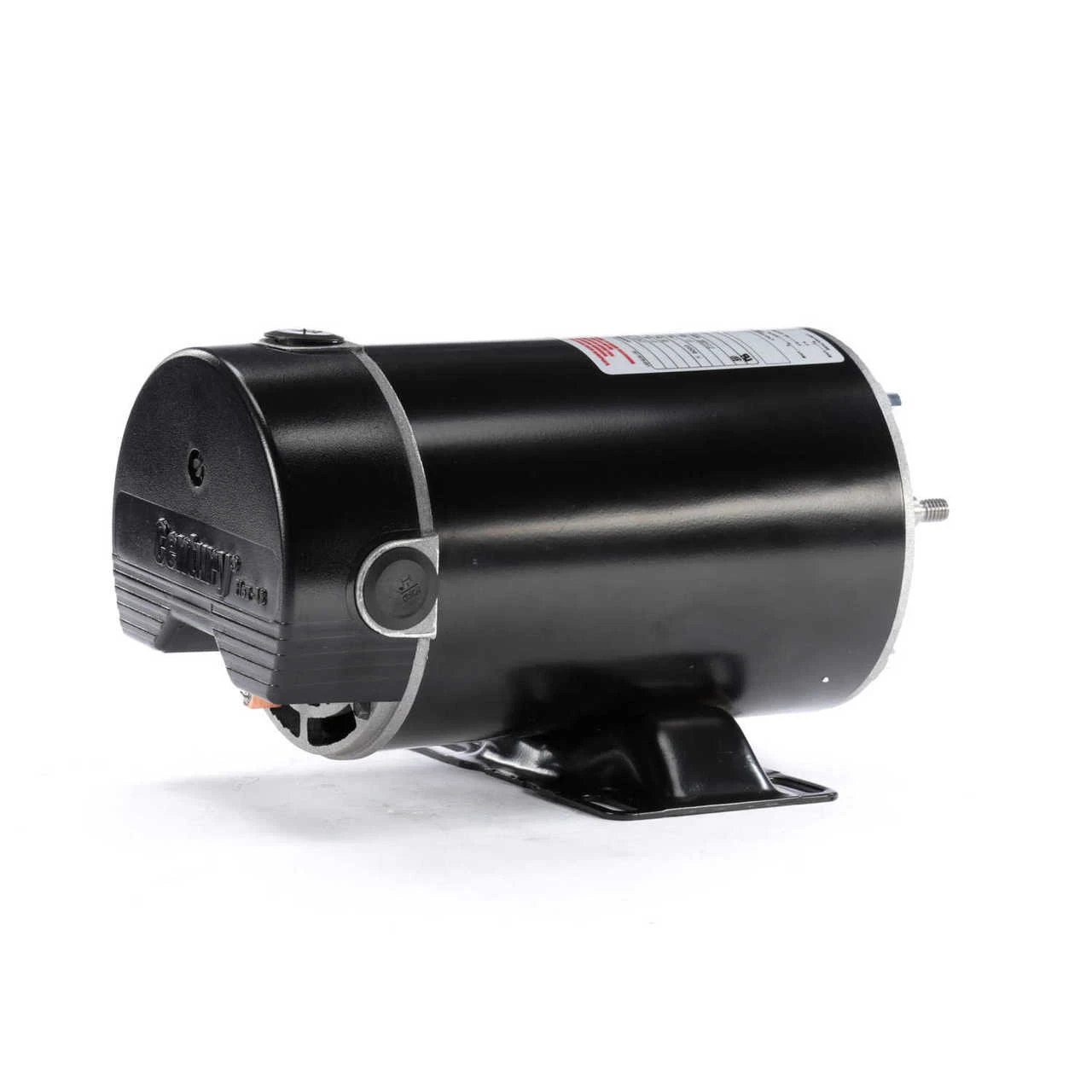

BN35V1 Century 1.5 Hp 3450 RPM 48Y Frame 115/230V Above Ground Swimming Pool & Spa Motor

BN35V1 Century 1.5 Hp 3450 RPM 48Y Frame 115/230V Above Ground Swimming Pool & Spa Motor - Image 2

BN35V1 Century 1.5 Hp 3450 RPM 48Y Frame 115/230V Above Ground Swimming Pool & Spa Motor - Image 3

Original price was: $208.99.Current price is: $97.99.

SKU: ZWXLY 1698654586 Category: Pool & Spa Motors Tag: US Motors

Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less
Online assistance, always just a message away.

Description
Reviews (0)

Above ground swimming pool and spa motor

1.5 HP 115/230 Volts 16.0/8.0 amps 60hz.
3450 RPM – SINGLE SPEED
Auto Overload Protection
Non-Reversible – CCW Facing the Shaft
Stainless Steel Shaft
Ball Bearings
48Y Frame; Thru-Bolt mount -Rigid Base
One Year Manufacture Warranty

These are called Thru-Bolt mount motors, as the pump mounts to the face of the motor with the motor thru bolts.

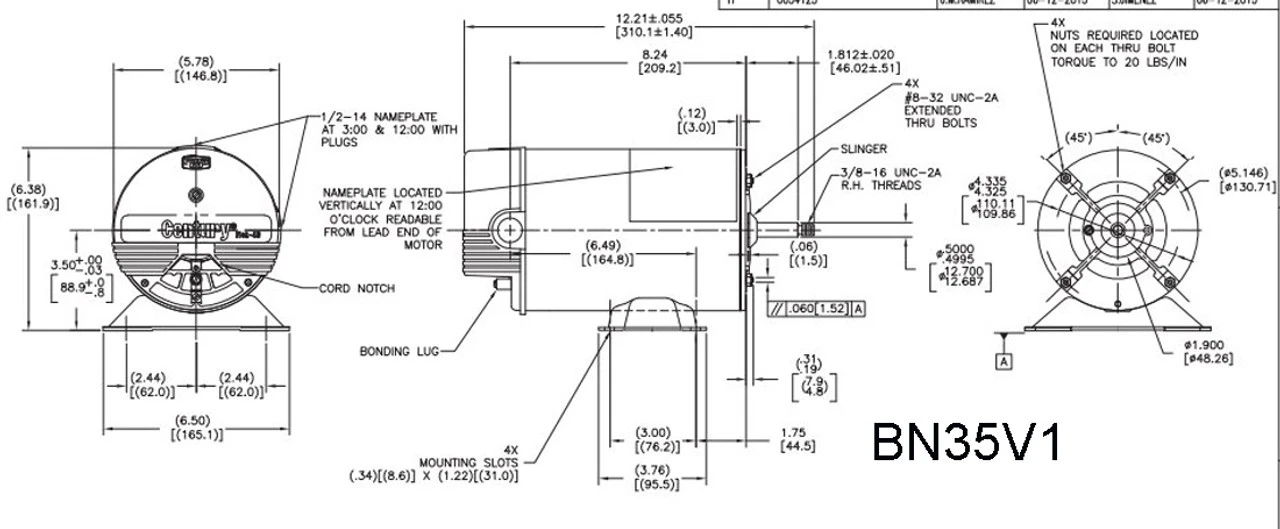

48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end.
Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate.

These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps.
Replaces AO Smith/Century BN35, BN35SS, C48AA72A01
US Electric Motor Equivalent EZBN35
Dayton 6PWA4
