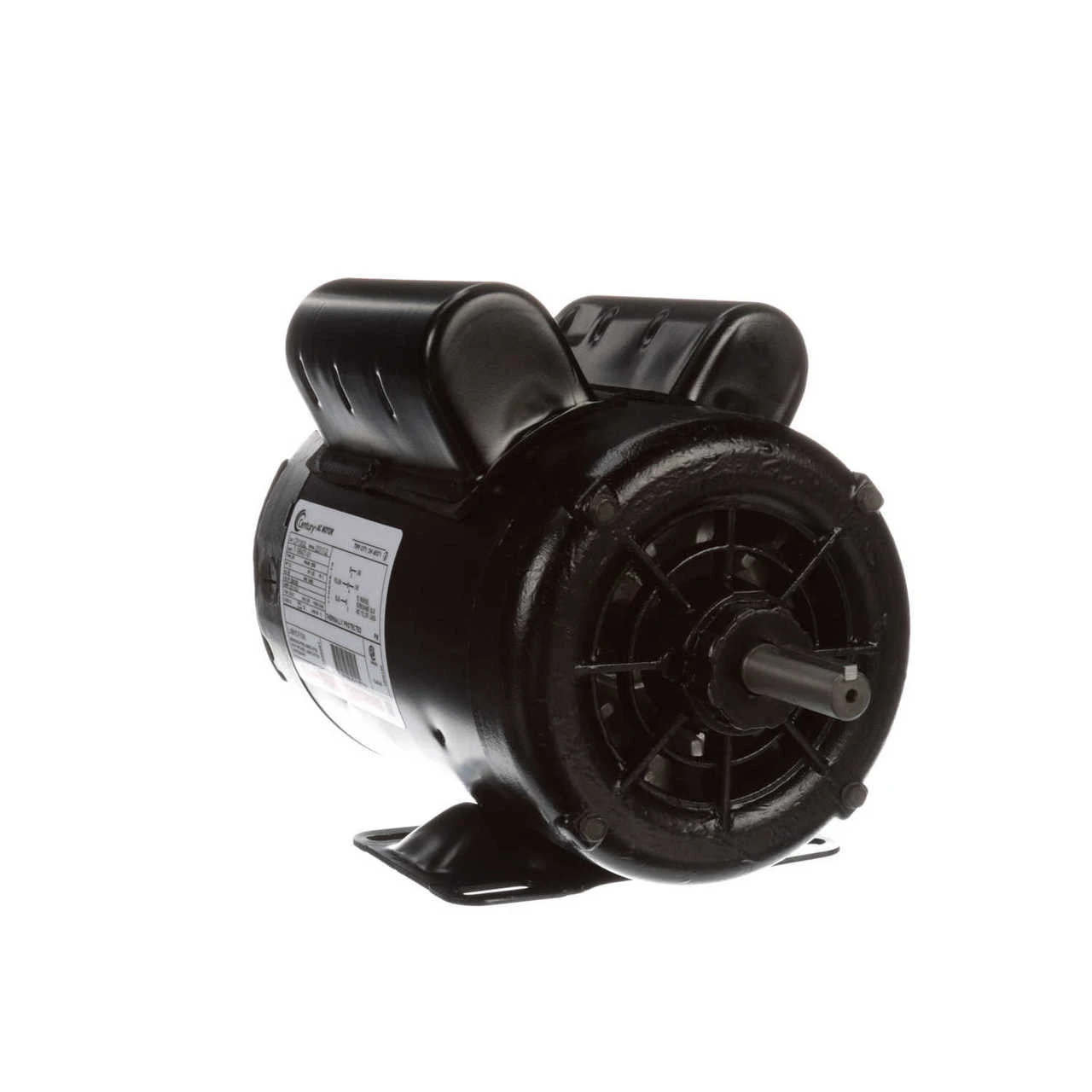

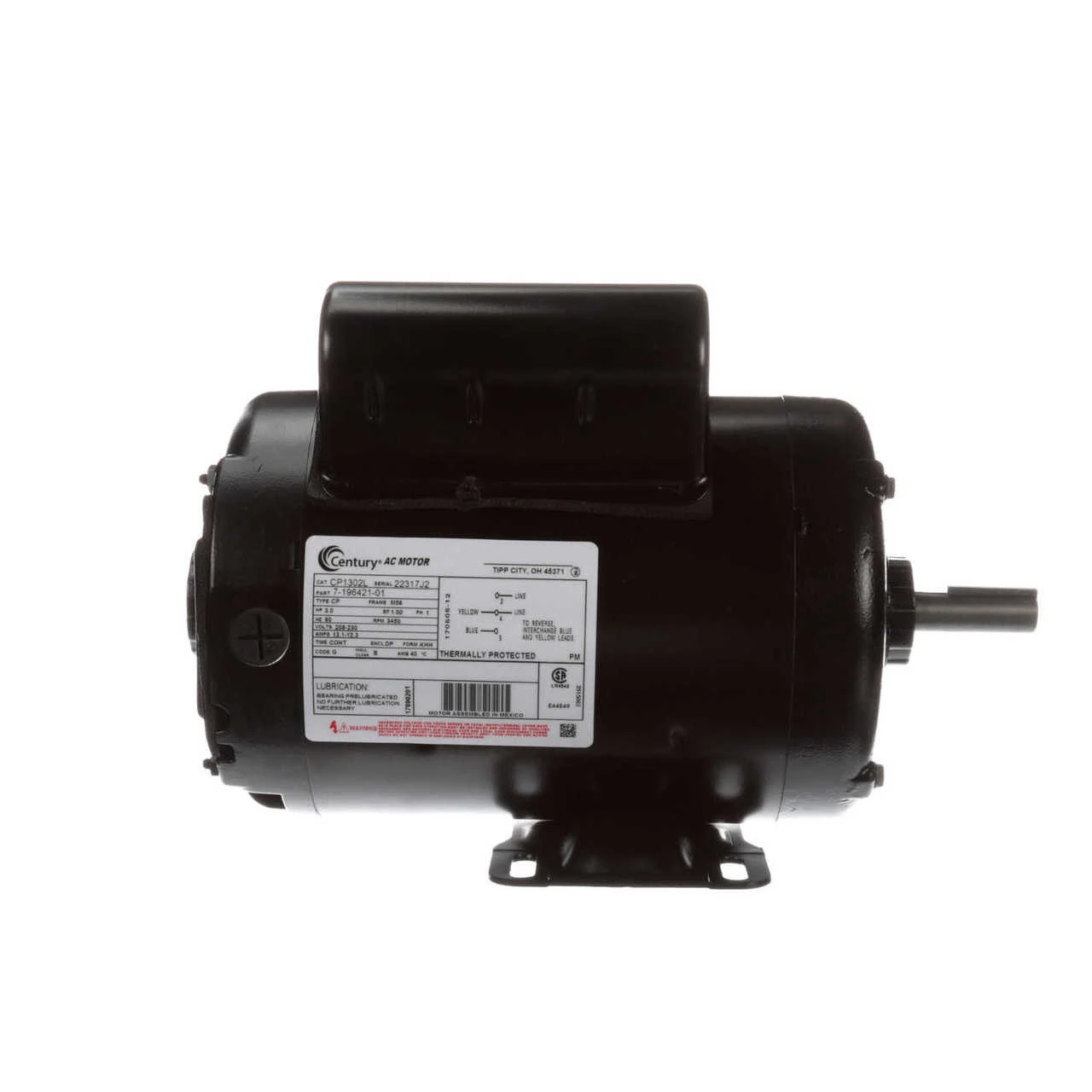

CP1302L Century 3 HP 3450 RPM 56 Frame 208-230V Air Compressor Motor - Century # CP1302L

CP1302L Century 3 HP 3450 RPM 56 Frame 208-230V Air Compressor Motor - Century # CP1302L - Image 2

CP1302L Century 3 HP 3450 RPM 56 Frame 208-230V Air Compressor Motor - Century # CP1302L - Image 3

CP1302L Century 3 HP 3450 RPM 56 Frame 208-230V Air Compressor Motor - Century # CP1302L - Image 4

Original price was: $382.40.Current price is: $98.99.

SKU: ZWXLY 1698662466 Categories: Air Compressor Motors, Electric Motors Tag: Century Electric Motor

Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less
Online assistance, always just a message away.

Description
Reviews (0)

3 HP 3450 RPM, 13.1/12.3amp; 208-230V 60hz.; Reversible.
Open Drip Proof
Ball Bearings
Service Factor 1.0
Manual Overload Protection
NEMA 56 Frame – Flat Rigid base mount
Shaft: 5/8″ diameter x 1 7/8″.

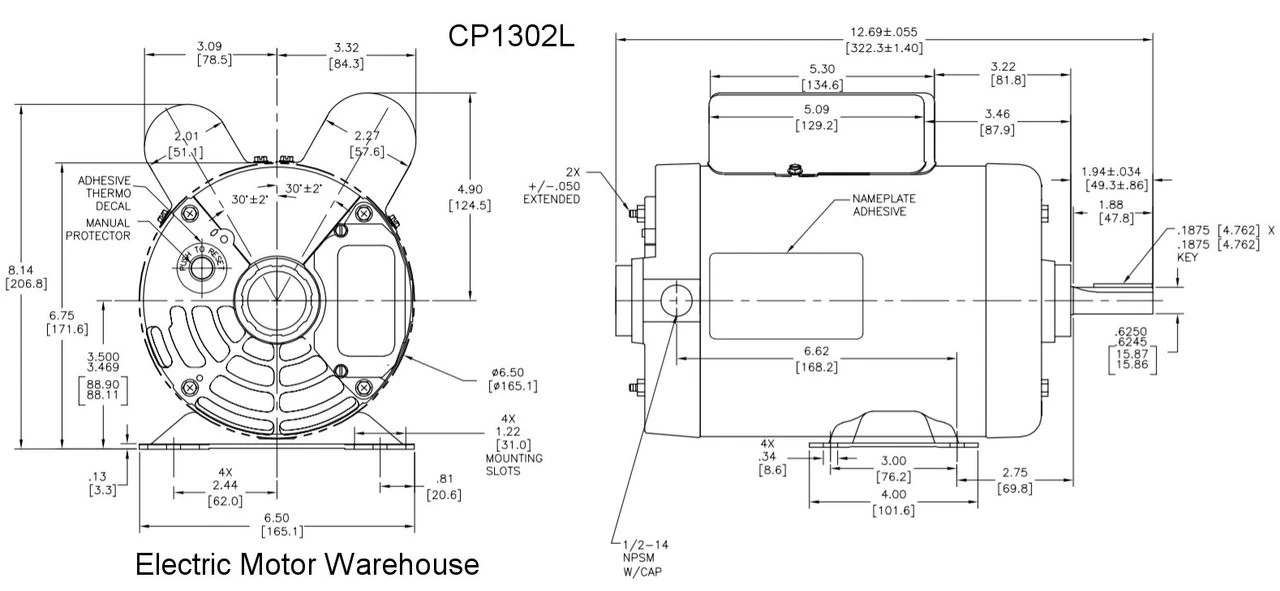

This replacement compressor motor is commonly used on the small “home/shop” air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3″ x 5″ bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 12.59″; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.
