Original price was: $306.00.$95.99Current price is: $95.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 15 hp 1800 RPM, 42.0 amps 200V Three Phase

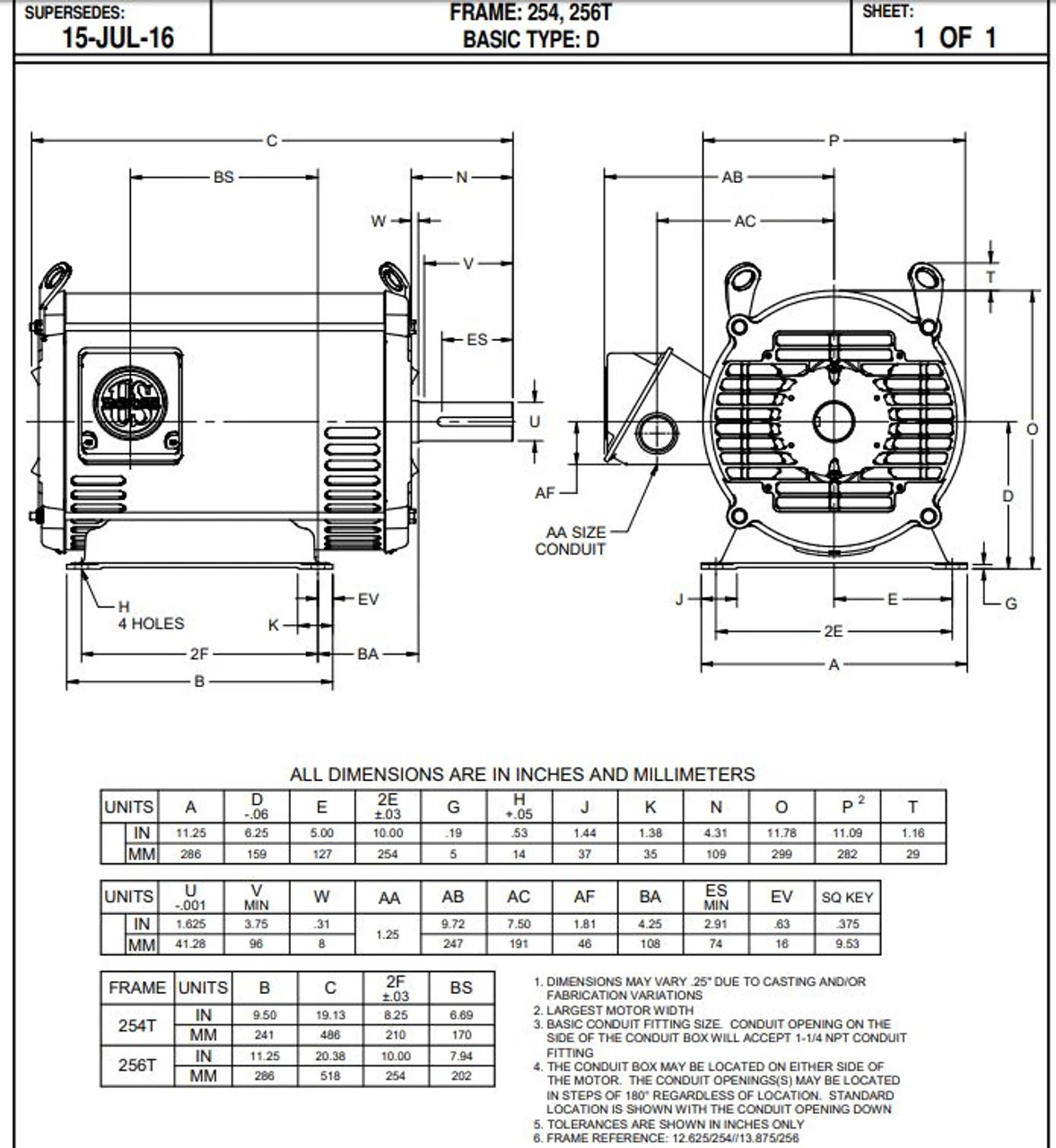

- NEMA 254T Frame Keyed Shaft 1-5/8″ Diameter x 4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 19.1″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

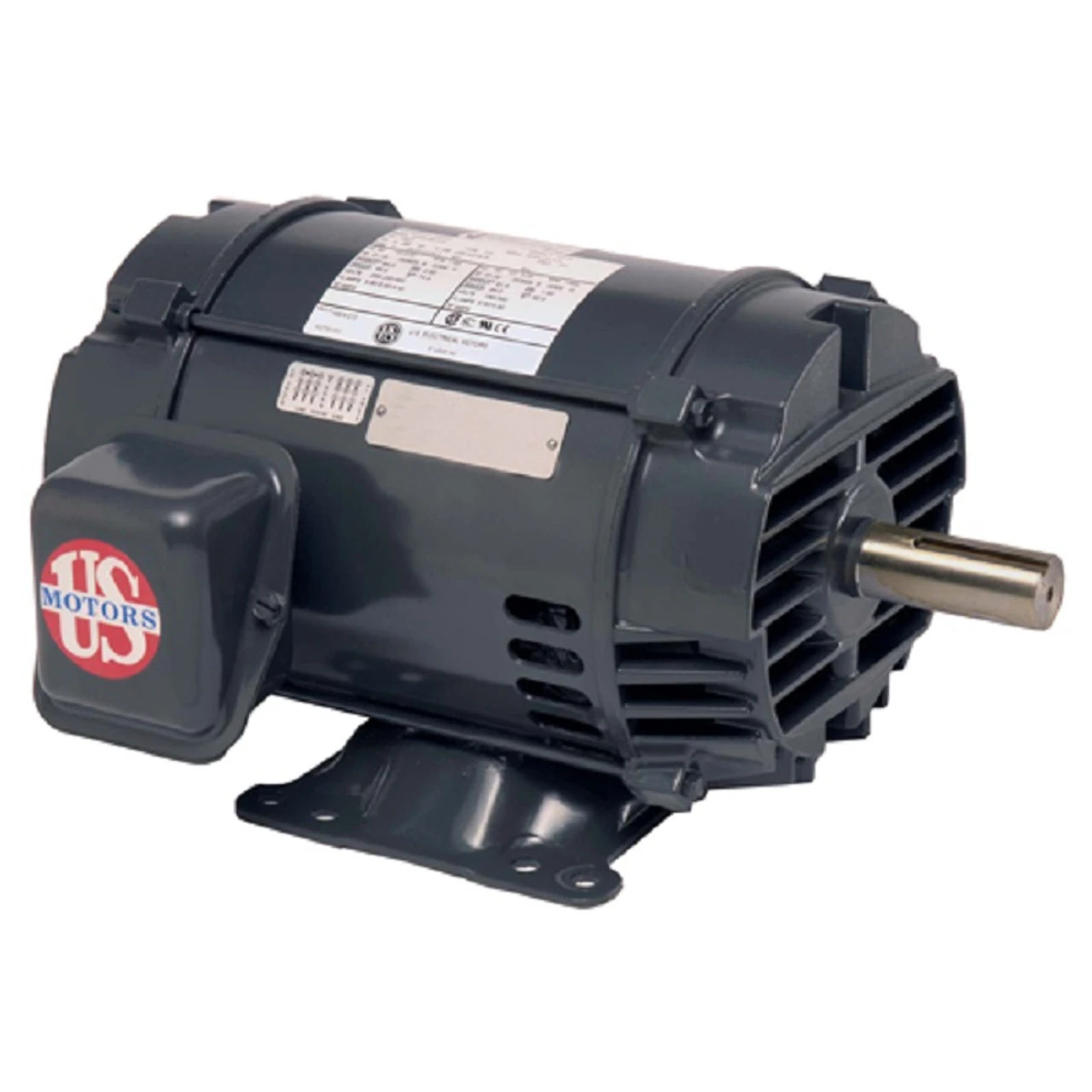

Model FB85, Dayton 6YP97
