Original price was: $335.00.$96.99Current price is: $96.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 40 hp 1800 RPM, 105 amps 200 Volts 60 Hz Three Phase Motor

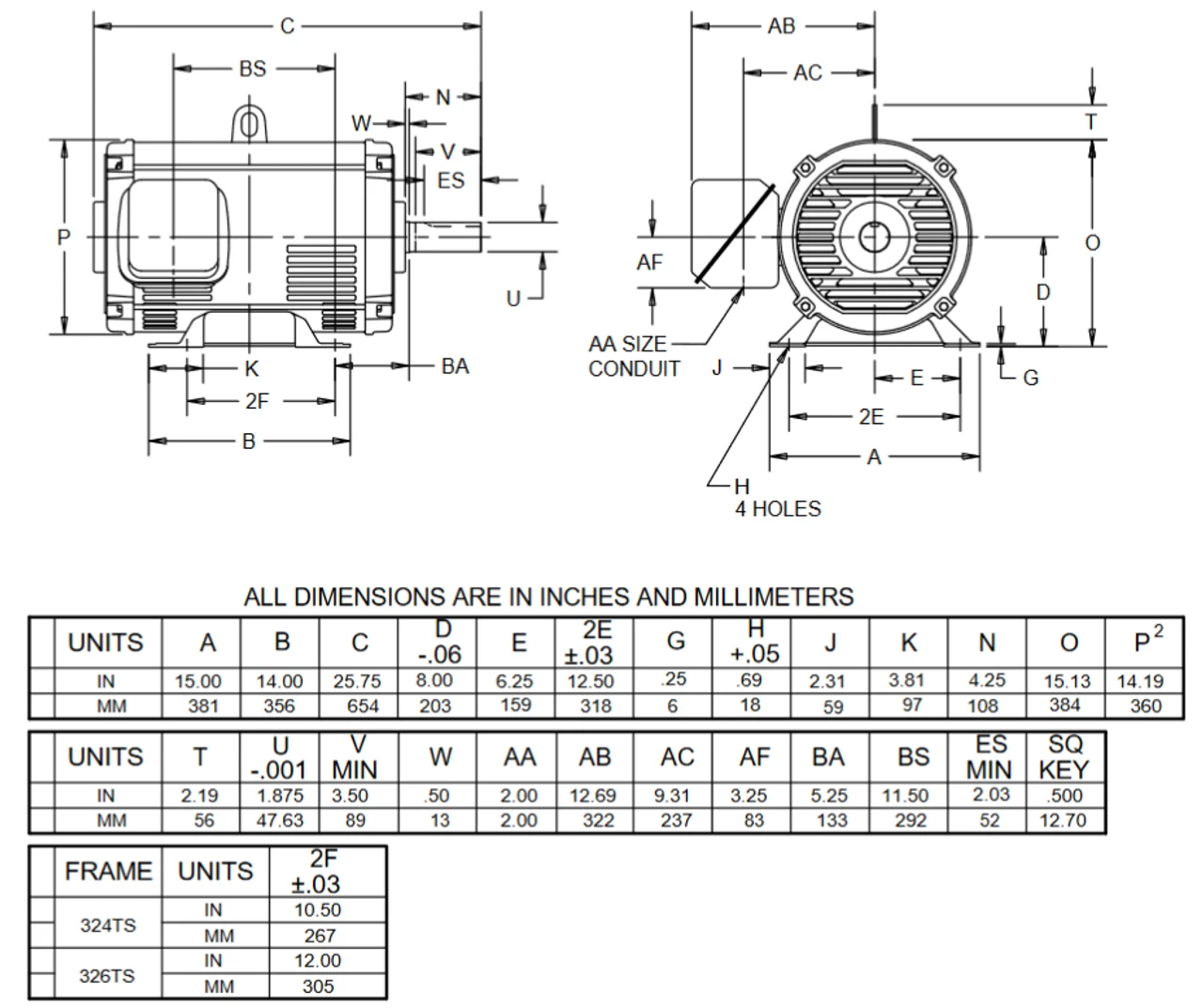

- NEMA 324TS Rolled Steel Frame, Keyed Shaft 1 7/8″ Diameter x 3 3/4″
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. DC31

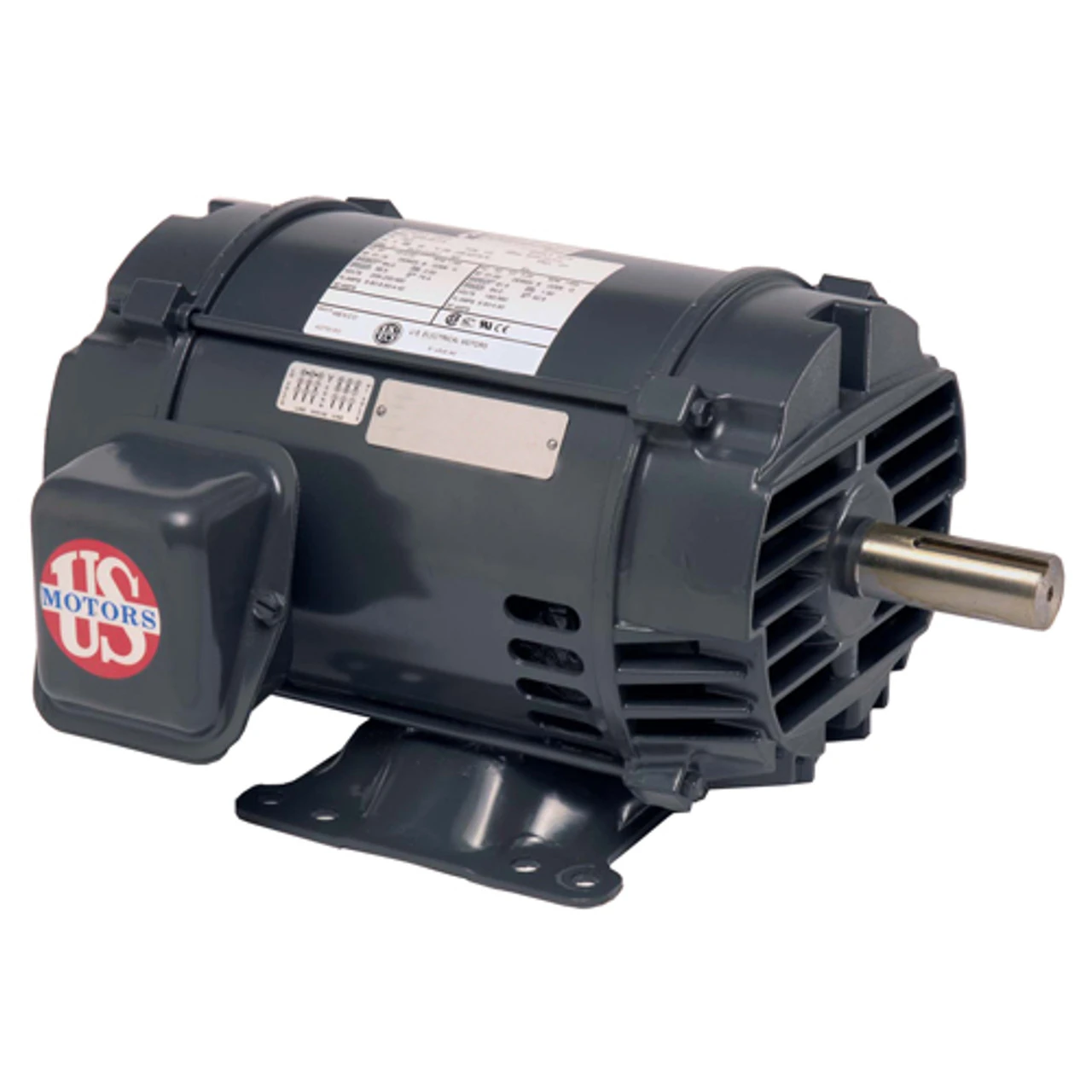

Be the first to review “D40P2HS Nidec 40 Hp 1800 RPM 324TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor”
