Name: Enjoy the Best of Online Shopping with EE506-5 Nidec 1 HP 3600 RPM 3-Phase 575V 56J Frame (No Base) ODP Special Pump Motor - Fresh Finds on Electricmotorshub.com United States of America.
SKU: ZWXLY 1698658207
Price: 99.99 USD
Availability: InStock

Sale!

EE506-5 Nidec 1 HP 3600 RPM 3-Phase 575V 56J Frame (No Base) ODP Special Pump Motor

EE506-5 Nidec 1 HP 3600 RPM 3-Phase 575V 56J Frame (No Base) ODP Special Pump Motor - Image 2

Original price was: $178.78.Current price is: $99.99.

SKU: ZWXLY 1698658207 Category: Electric Motors Tag: Nidec

Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less
Online assistance, always just a message away.

Description
Reviews (0)

    1 hp 3600 RPM, 2.1 amps 575 Volts 60 Hz Three Phase Motor

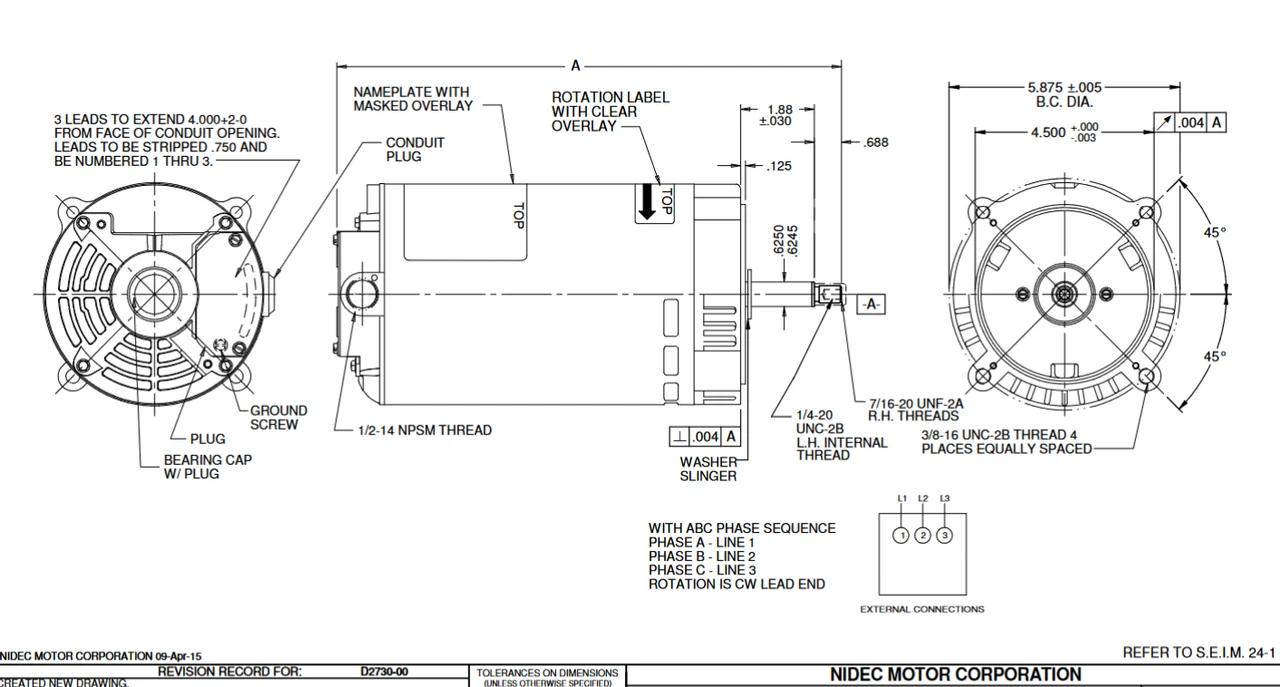

    NEMA 56J Frame, Shaft 5/8″ Diameter x 1 7/8″ Long with threaded end
    Service Factor: 1.4, Overload protection = None
    Face Mount, Ball Bearings, Class B Insulation, CCW Drive End
    1 Year Manufacture Warranty

Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate. ODP = Open Drip-Proof. P055DAN1345013J
