Original price was: $323.00.$97.99Current price is: $97.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.

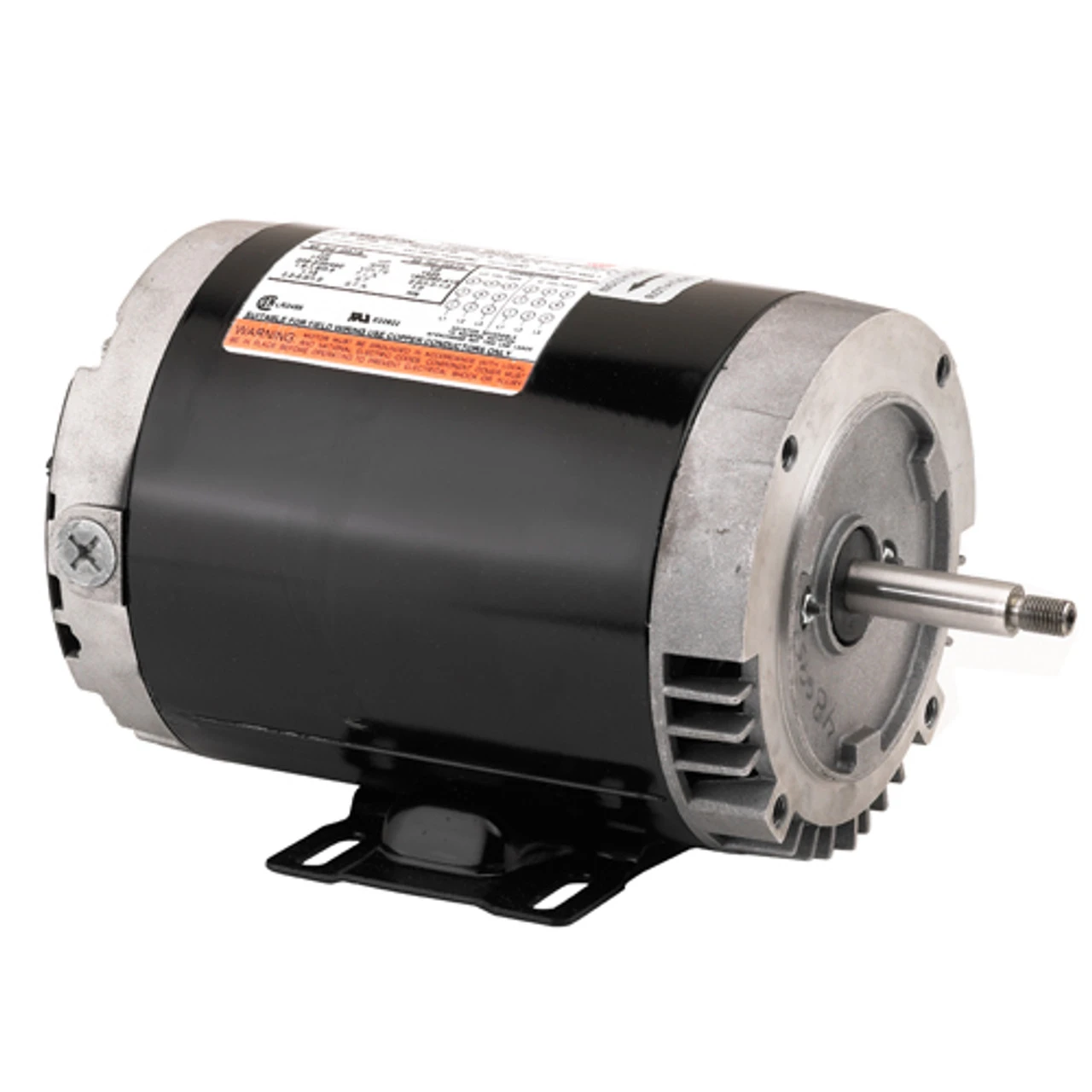

3 hp 3600 RPM, 8.6-8.4/4.2 amps 208-230/460 Volts 60 Hz Three Phase Motor

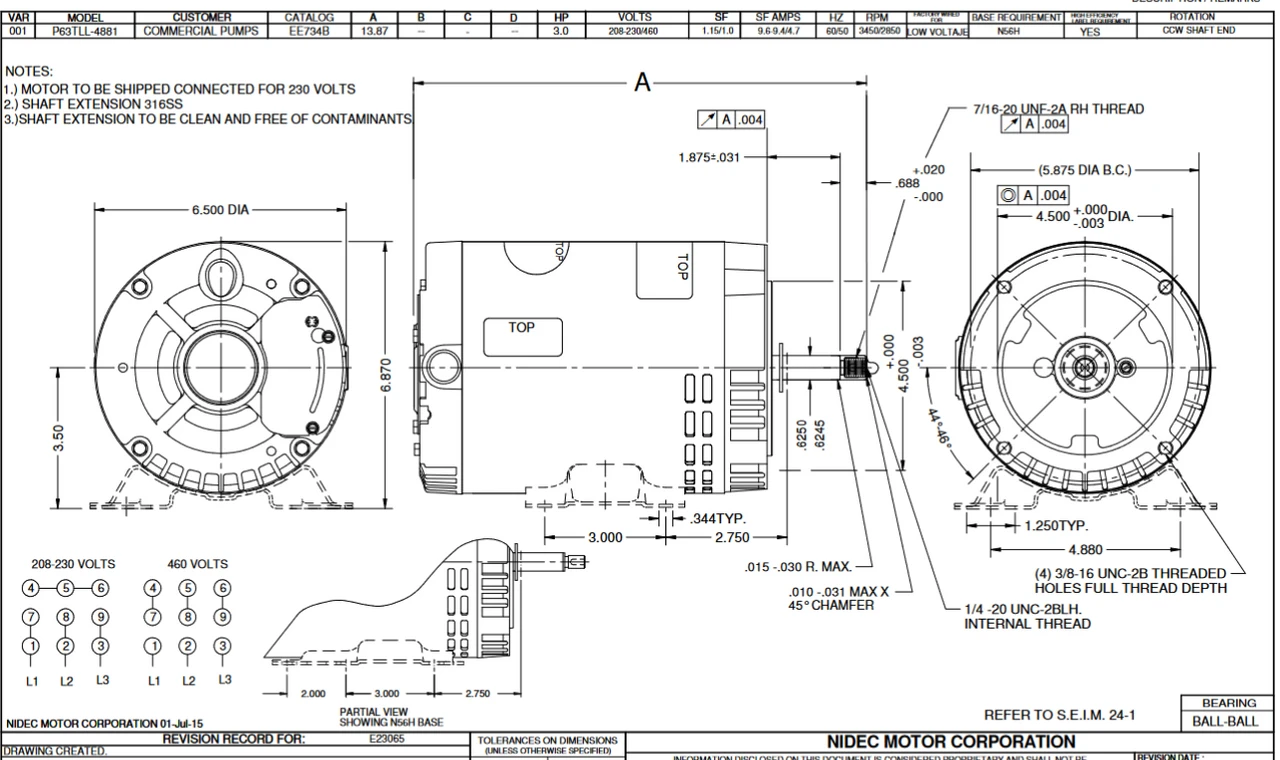

NEMA 56J Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″ long plus threaded end
Service Factor: 1.15, Overload protection = None
Rigid Mount, Ball Bearings, Class F Insulation, CCW Drive End
1 Year Manufacture Warranty
Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate. ODP = Open Drip-Proof. P063TLL4881013J
Be the first to review “EE734B Nidec 3 HP 3600 RPM 3-Phase 208-230/460V 56J Frame (Rigid Base) ODP Special Pump Motor”
