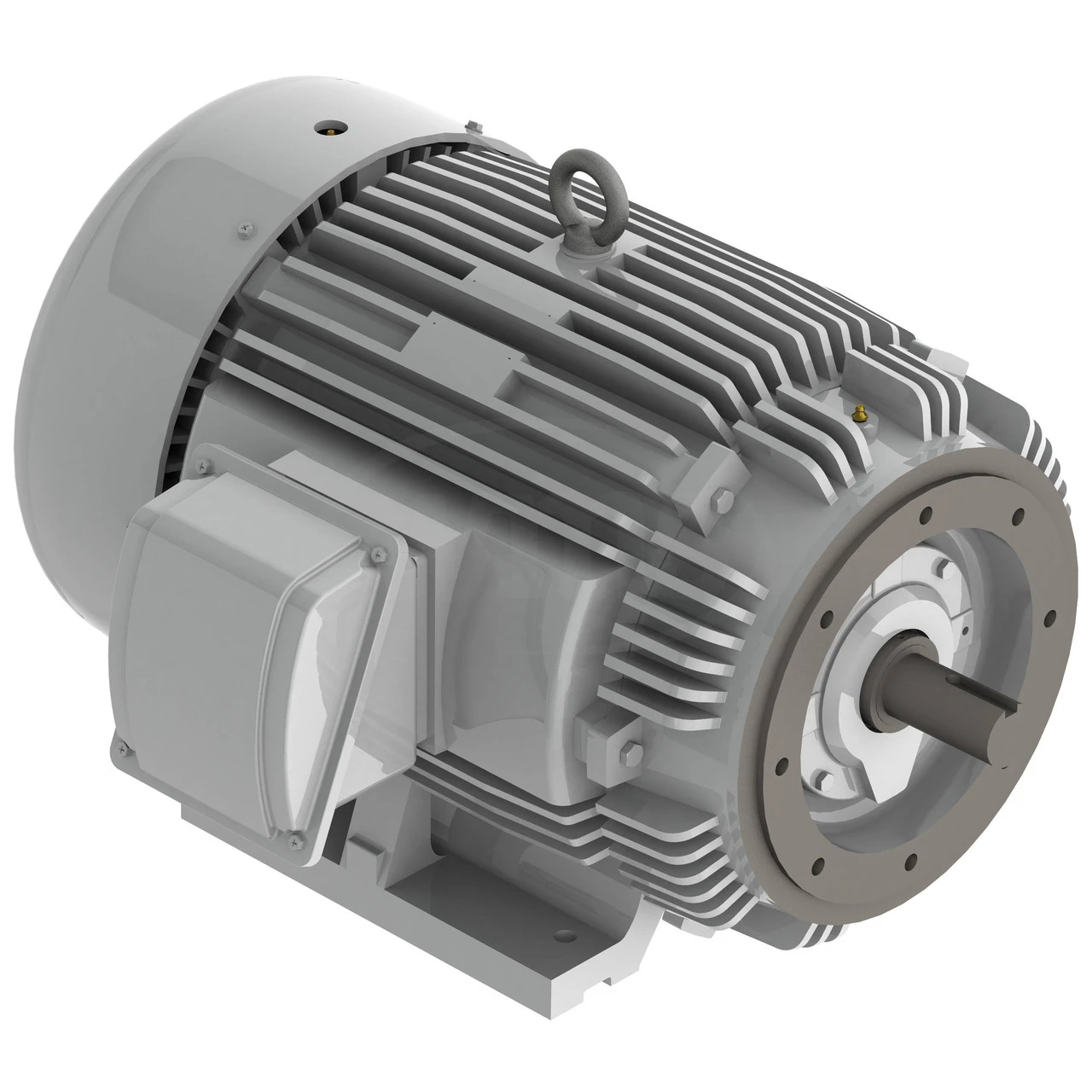

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 20 hp 1200 RPM, 48.6/24.3 amps 230/460 Volts 60Hz. Three Phase
- NEMA 286TC Frame, 4 5/8 x 1 7/8″ Dia. Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
