Name: First-Time Buyer Special: Save 10% on EU0502B Nidec 1/2 Hp 3600 RPM 115/208-230V 56J Frame (Rem Base) ODP 1-Phase Electric Motor at Motor Warehouse Store.
SKU: ZWXLY 1698658063
Price: 98.99 USD
Availability: InStock

Sale!

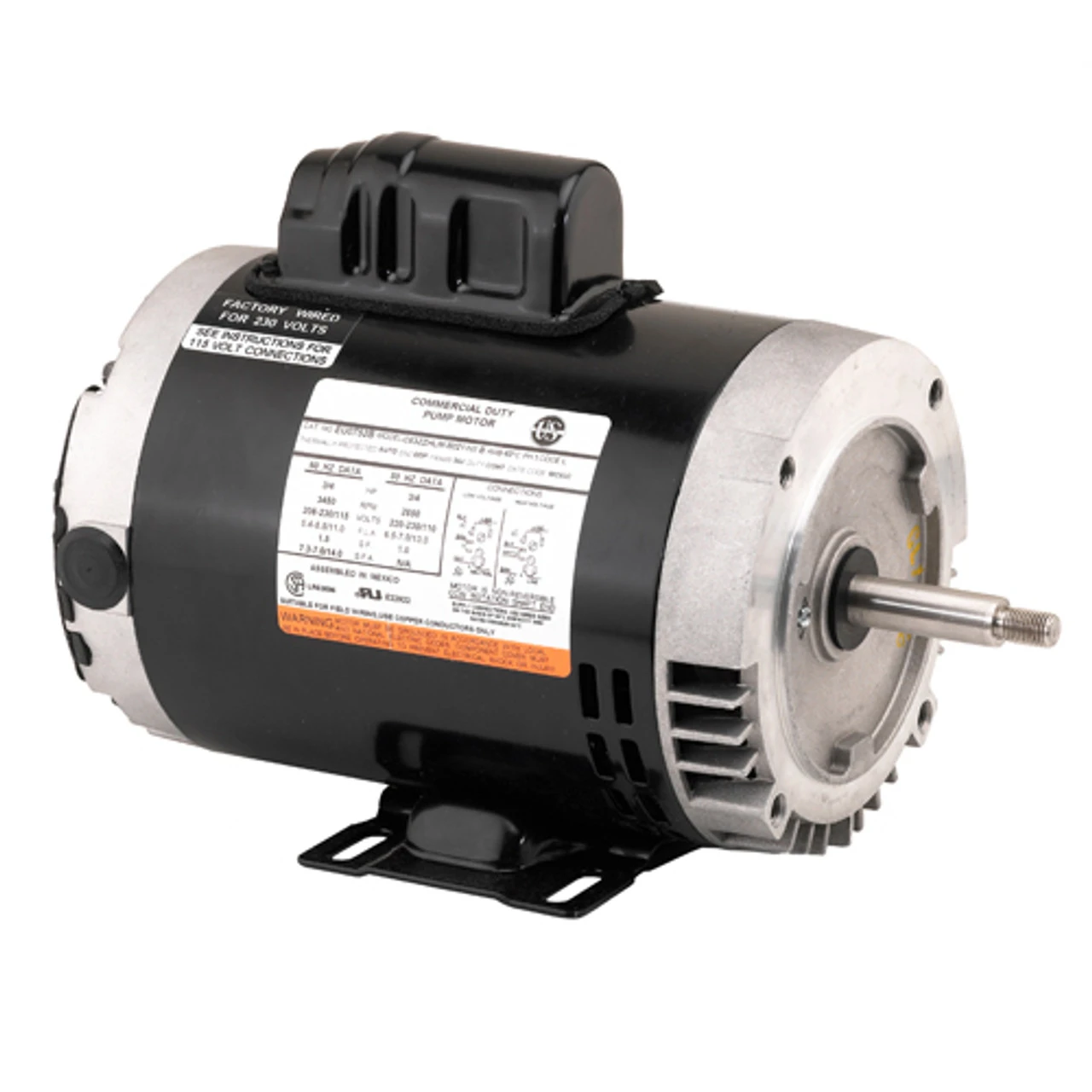

EU0502B Nidec 1/2 Hp 3600 RPM 115/208-230V 56J Frame (Rem Base) ODP 1-Phase Electric Motor

EU0502B Nidec 1/2 Hp 3600 RPM 115/208-230V 56J Frame (Rem Base) ODP 1-Phase Electric Motor - Image 2

Original price was: $265.66.Current price is: $98.99.

SKU: ZWXLY 1698658063 Category: Electric Motors Tag: Nidec

Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less
Online assistance, always just a message away.

Description
Reviews (0)

1/2 hp 3600 RPM, 8.2/4.0-4.1 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
NEMA 56J Frame, Shaft 5/8″ Diameter x 1 7/8″ Long with threaded tip
Service Factor: 1.15, Overload protection = Auto
C-Face or Removable Base Mount, Ball Bearings, Class B Insulation, CCW drive end
1 Year Manufacture Warranty

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. C063HLL5020013J
