Original price was: $125.90.$88.13Current price is: $88.13.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 1/15 HP 1725 RPM, 1.3 amps, 115V 60hz. 7.5 MFD Permanent Split Capacitor (PSC)
- NEMA 48Y Open Frame, 1/2″ diameter stainless steel shaft with 3/8″ dia. end thread
- 1.0 Service Factor, Auto Overload Thermal Protection, Class B insulation
- Non-Reversible – CCW Rotation facing the shaft
- Base Mount, Ball Bearings, 3 1/2 shaft height

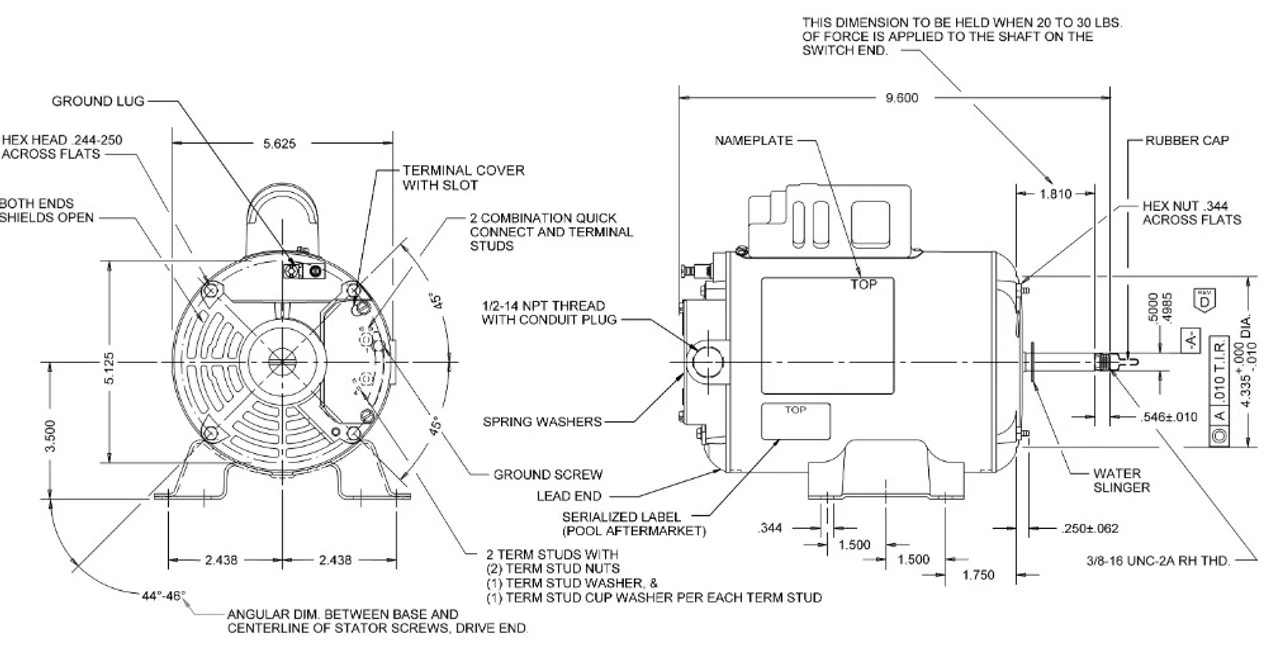

Above ground swimming pool and spa motors. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. K055NSW1167013J
Be the first to review “EV115 US Motors 1/15 Hp 1725 RPM 48 Frame 115V Thru-Bolt Spa Motor”
