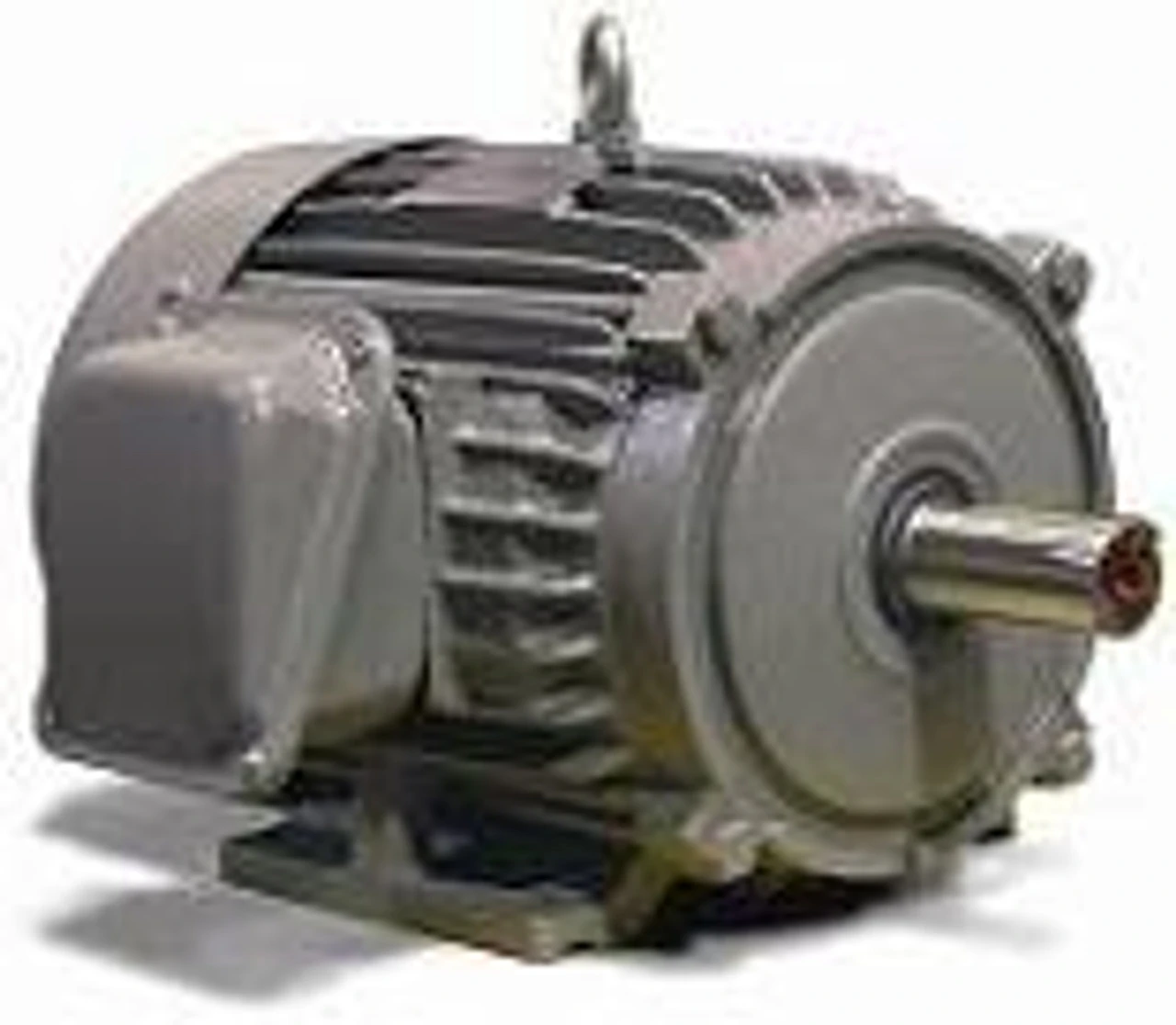

TECO WESTINGHOUSE MAX-PE, NEMA PREMIUM ELECTRIC MOTOR
SEVERE DUTY RATED
- 1 1/2 hp 3600 RPM, 4.0/2.0 amps 230/460 Volts 60hz. Three Phase

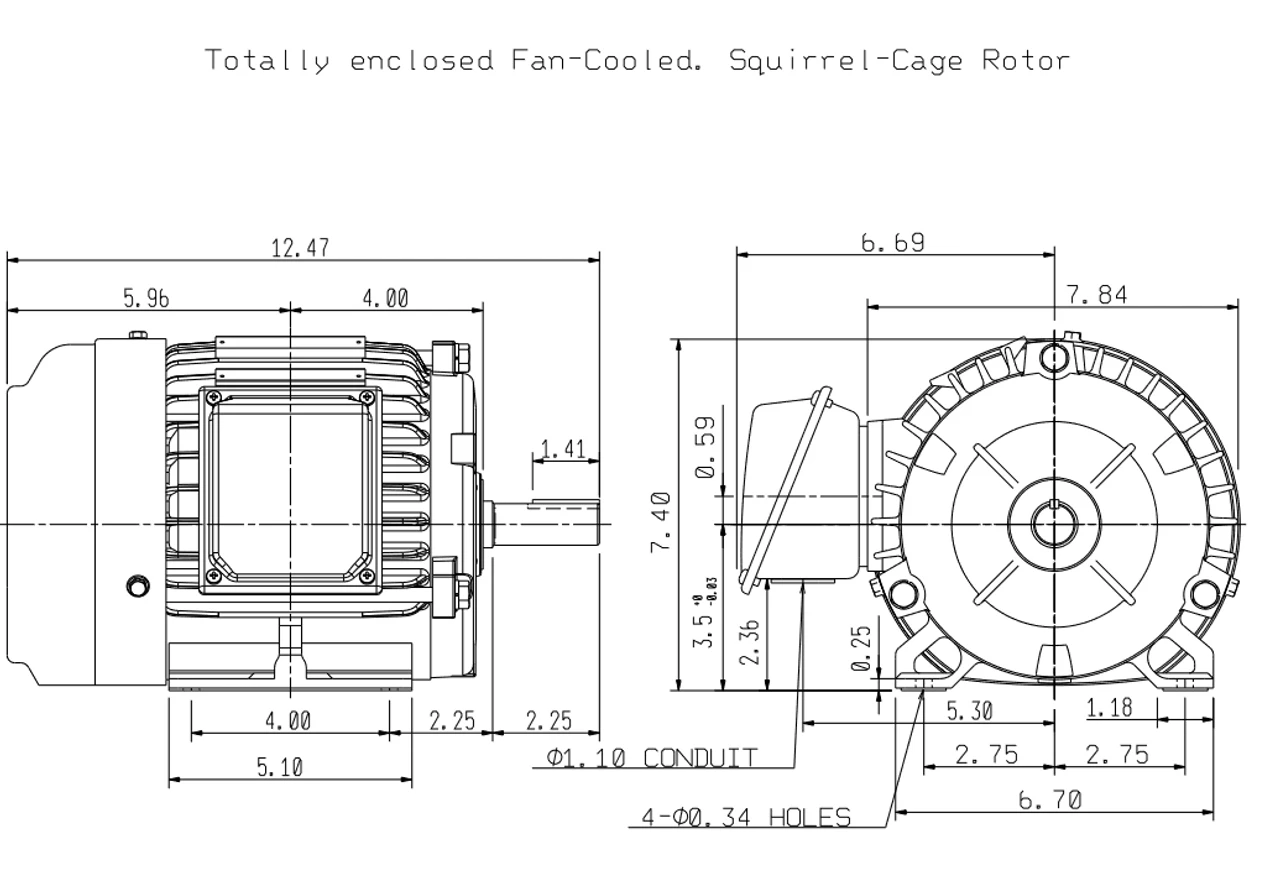

- NEMA 143T Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Cast Iron Construction, Enclosure: Totally Enclosed Fan Cooled (IP54)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
