Original price was: $341.00.$98.99Current price is: $98.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.

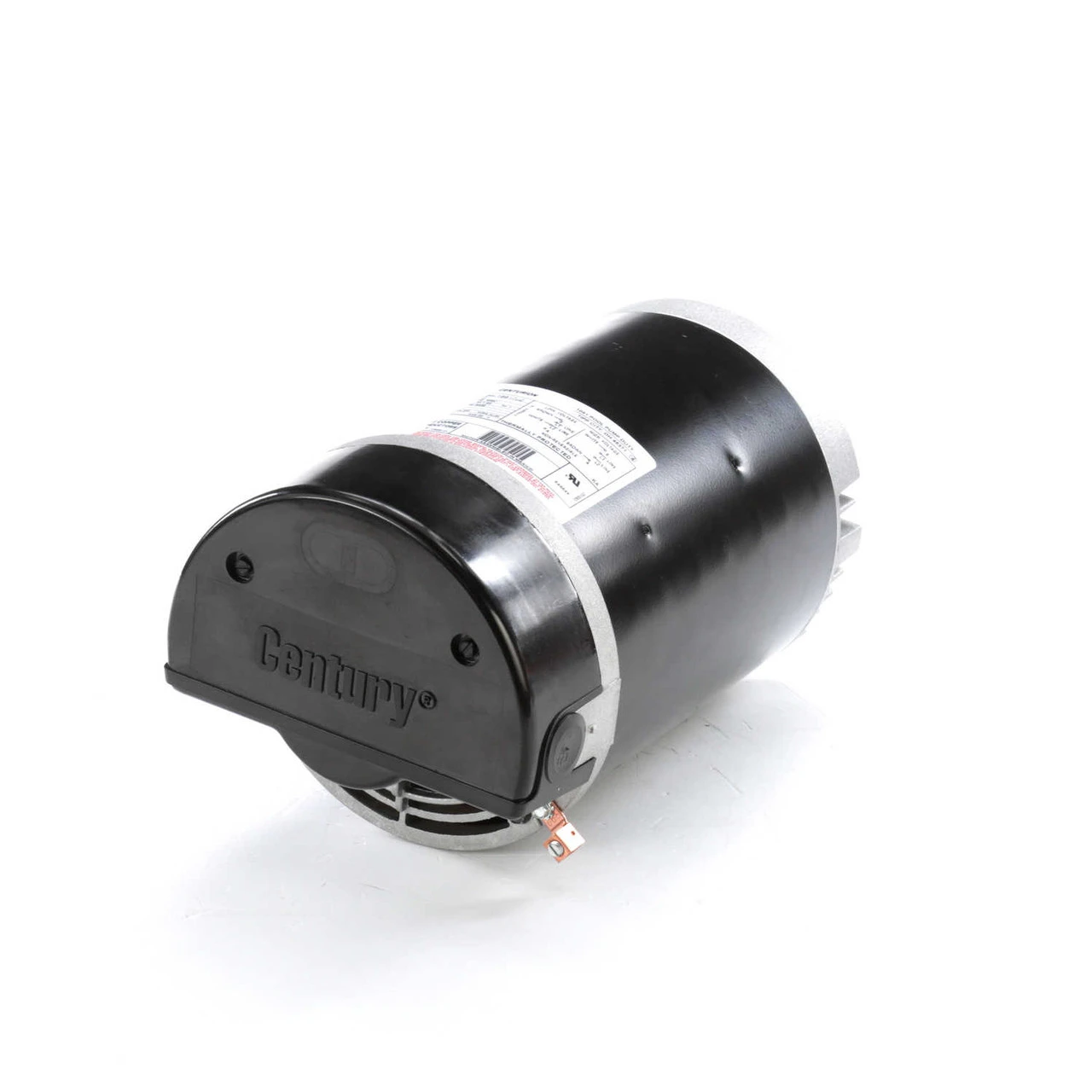

HAYWARD NORTHSTAR REPLACEMENT MOTOR
HAYWARD PART NO. SP1630Z1BNSC
- 3 HP 3450 RPM, 19.0 amps, 208-230V 60hz.
- Automatic Overload Protection – Service Factor 1.60
- Non-Reversible – CCW Rotation facing the shaft
- C-Face Mount, Round Body-no base
- 56-J Frame; 5/8″ diameter threaded stainless steel shaft
- 1 Year Manufacture Warranty
This is the motor Hayward uses on the Northstar inground pool pump. This is an Energy Efficient, full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shaft, sealed ball bearings, switchless, E-Coated main frame for superior corrosion resistance.

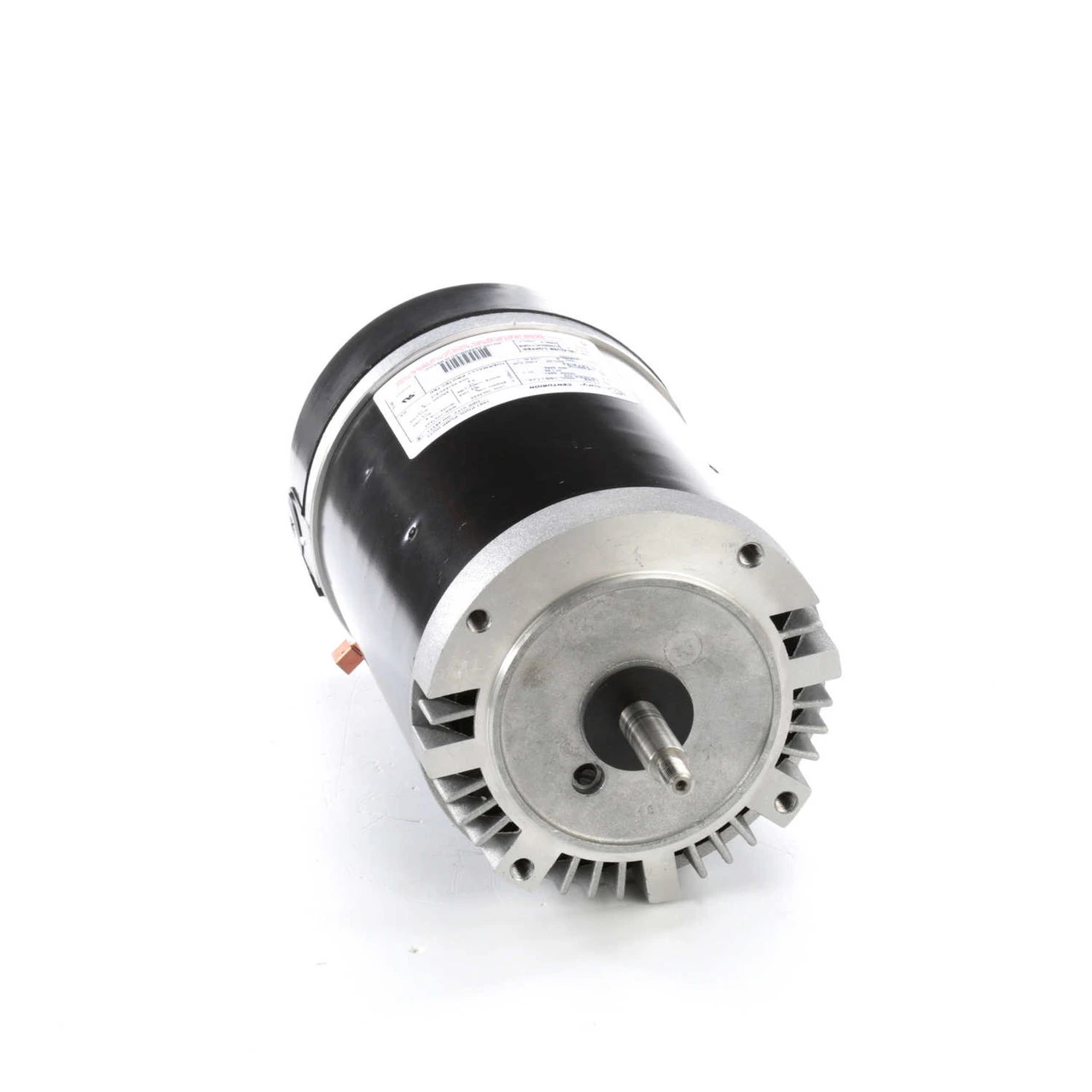

Motor has 4 threaded bolt holes on face for mounting the pump to the motor.
Bolt holes are 5 7/8″ on center measured across the shaft.
Wiring diagram on motor name plate.
US Electric Equivalent ESN1302
