Original price was: $306.00.$99.99Current price is: $99.99.
- Efficient and effective customer service, online.
- Free Shipping, No Compromise on Quality
- Get the Best for Less
- Online assistance, always just a message away.
- 5 hp 1800 RPM, 13.6-12.3/6.1 amps 208-230/460 Volts 60 Hz Three Phase Motor
- NEMA 184TC Rolled Steel Frame, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty

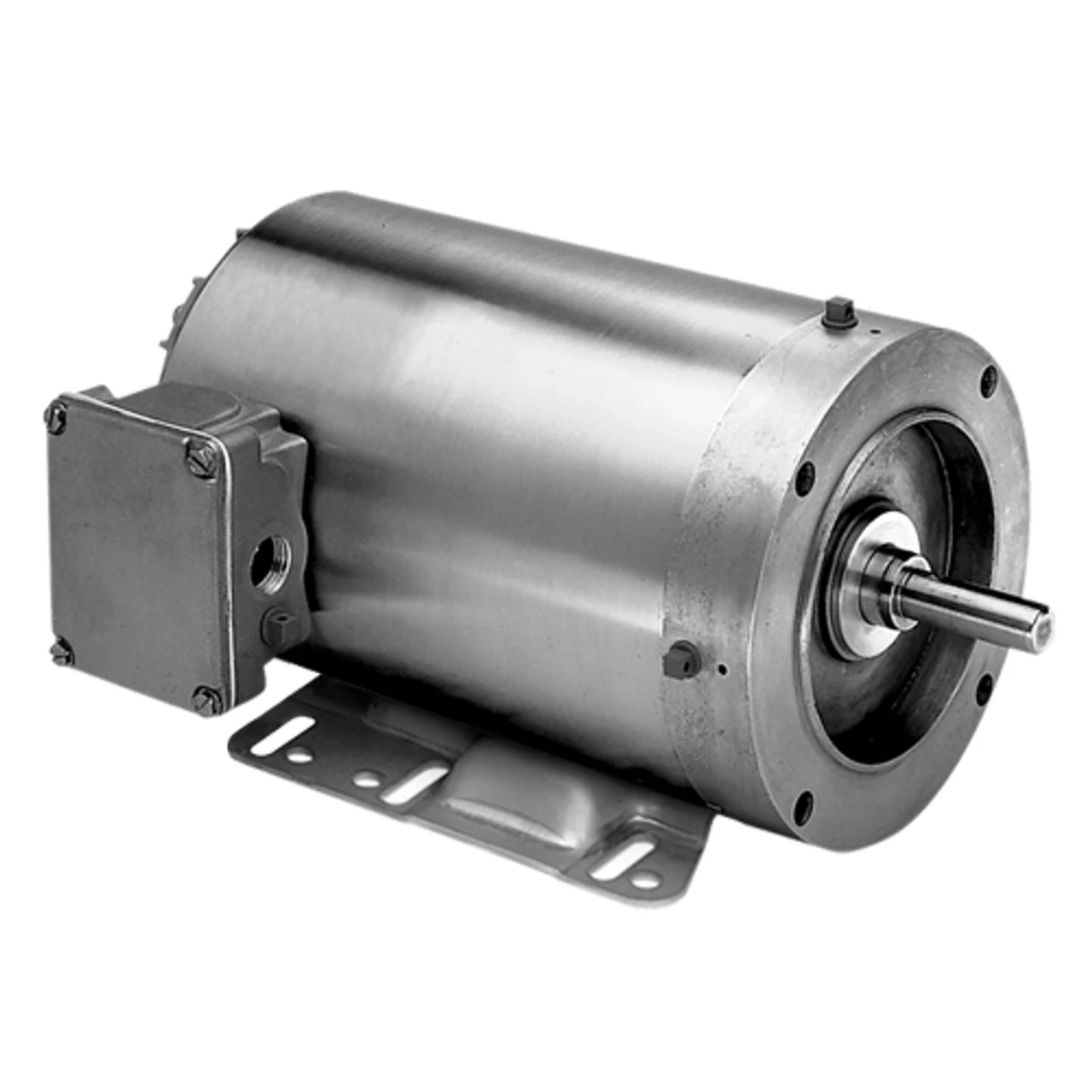

Paint-Free wash-down motor for food and pharmaceutical applications. All stainless steel except for the side box. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. DD47
Be the first to review “WDP5P2AC Nidec 5 Hp 1800 RPM 184TC Frame (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor”
