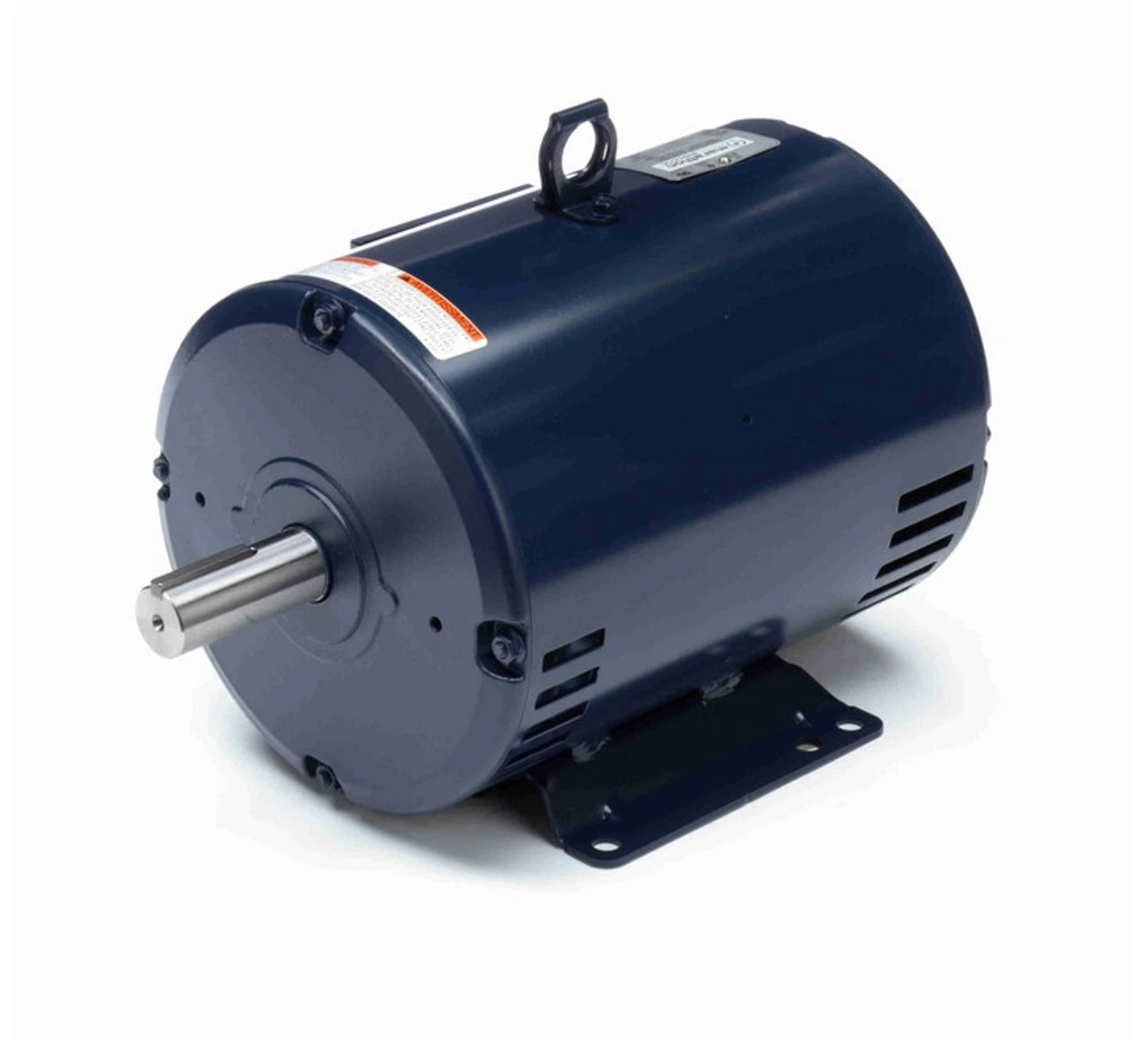

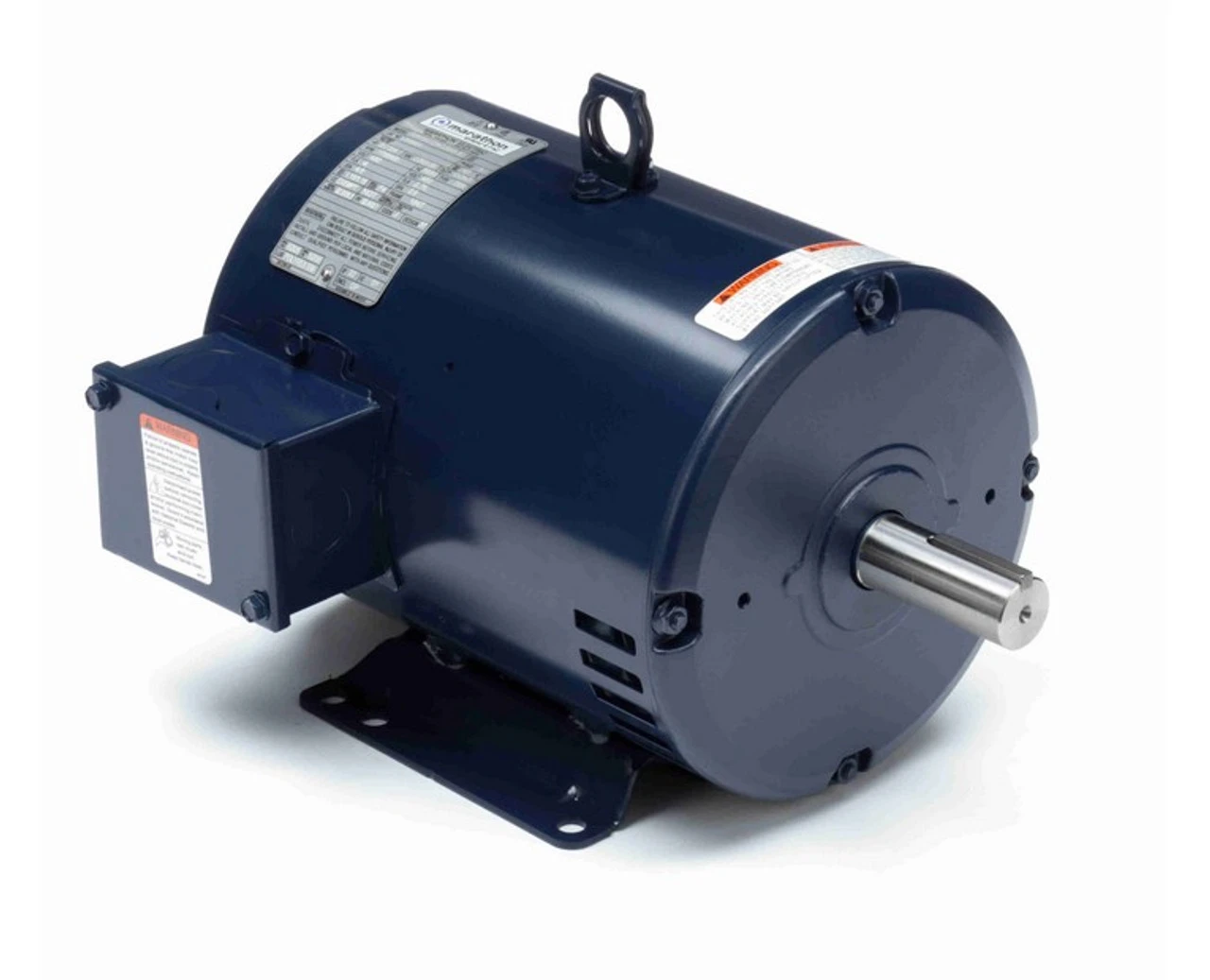

Y468A Marathon 3 Hp (2 Speed) 460V 1800/900 RPM ODP 182T Frame 3-Phase Variable Torque Motor

• 3 hp 1800/900 RPM, 4.0, 2.75 amps, 460 Volts 60 Hz, 3-Phase, 2 Winding

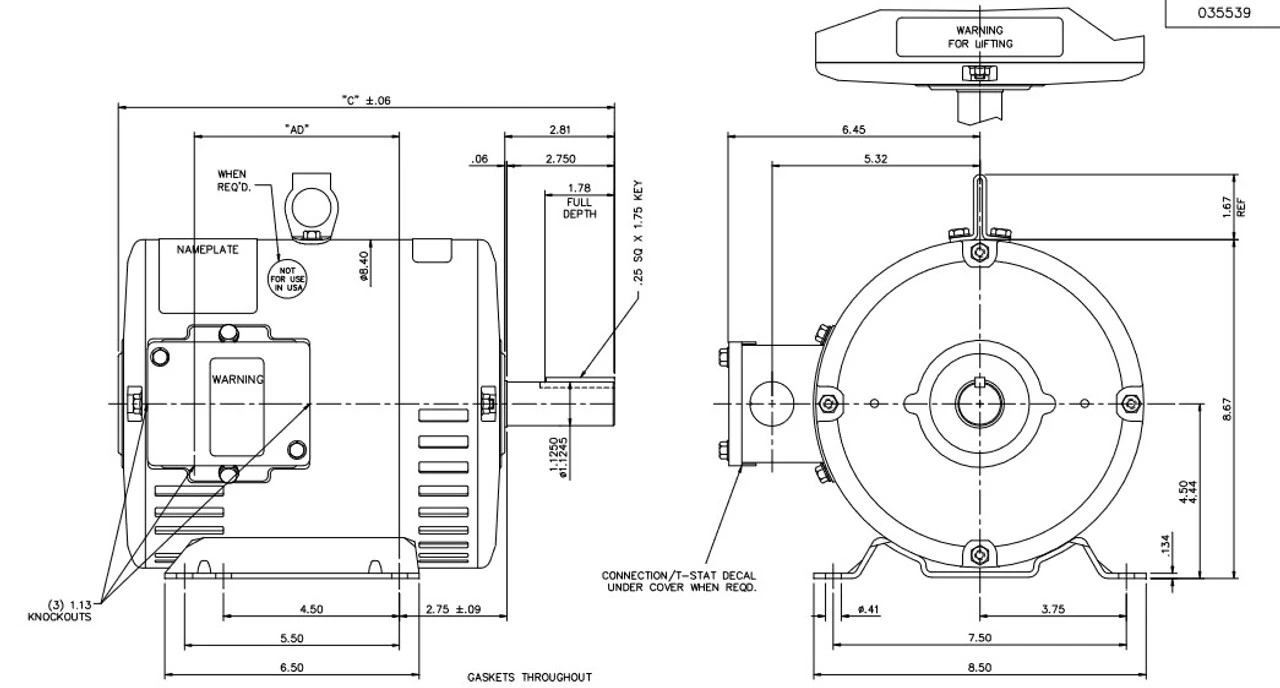

• NEMA 182T Frame, Shaft 2 7/8″ x 1 1/8″ Diameter, 2 speed
• Service Factor = 1.15, Thermal Protection = None
• Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
• 1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 184TTDW7230
